TOPWERK
LANGFANG
is your sales and service partner for all TOPWERK GROUP product brands in China.
since 1997
on site
100+
team members
200+
successful key projects
FULL-SERVICE
FOR YOUR PRODUCTION
TOPWERK LANGFANG is part of the global sales and service network of the German TOPWERK GROUP, which comprises the companies HESS GROUP, SR SCHINDLER and PRINZING PFEIFFER. TOPWERK LANGFANG is the designated partner for the Chinese market and for the customers of all group members in China.
TOPWERK LANGFANG is regarded as a strong driving force behind successful technical innovations and unique system solutions for all types of machinery and plant in the concrete industry.
Our innovative and flexible technical solutions are highly valued by our customers. TOPWERK LANGFANG is characterised by a strong customer focus; our high quality standards and our services meet the needs of our customers.
YOUR ADVANTAGE WITH TOPWERK LANGFANG
- Extensive product portfolio from the TOPWERK GROUP
- Bespoke system solutions
- Focus on quality and customer needs
- High flexibility in development and manufacturing
- Product quality standard
- Modern and expanded production facility – near Beijing
- Comprehensive services
- A reliable partner – since 1997

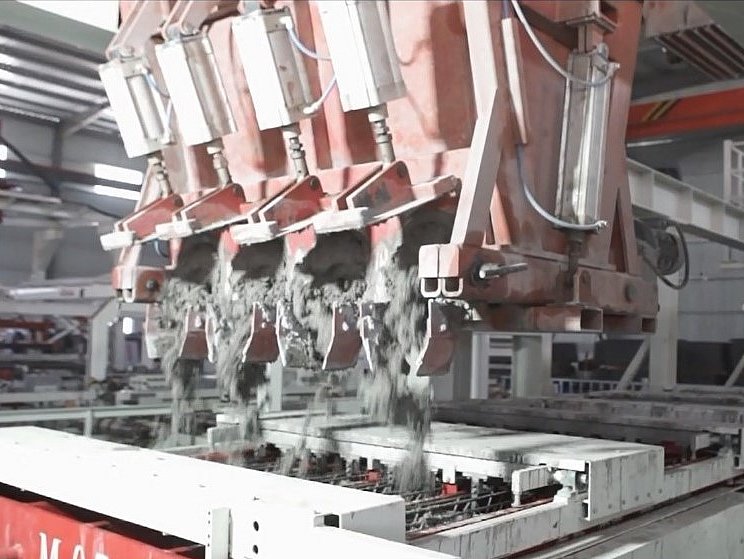

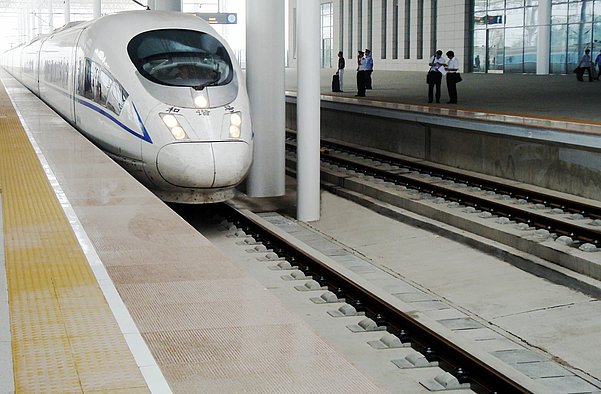

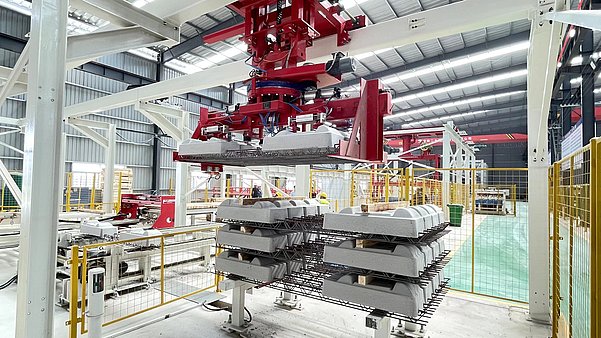

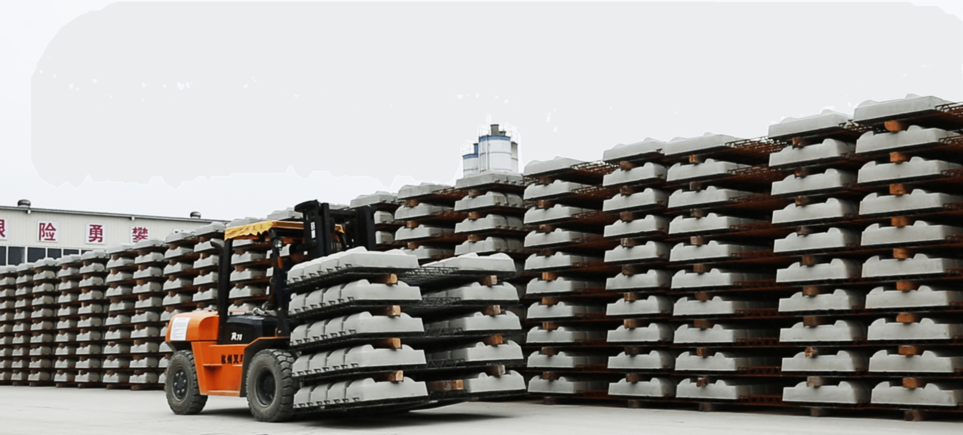

Solutions for sleeper factories – expanding your infrastructure worldwide
Since 2005, we have been developing and manufacturing bespoke production lines for railway sleepers – ranging from manual systems to fully automated production lines.
Flexibility and continuous development are the key strengths of our reliable and efficient sleeper plants, making us a preferred partner for the expansion of the high-speed rail network and for modern railway infrastructure projects worldwide, particularly in China.

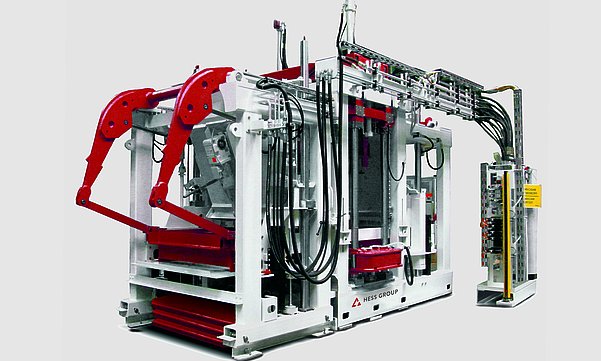

RH 1400 C Concrete Block and Paving Stone Machine
The RH 1400 C concrete block and paving stone machine combines innovative technology with a high degree of flexibility for various sectors of the concrete industry.
Produce a wide range of concrete blocks and paving stones with complete design freedom – for new product variants, distinctive finishes and unlimited design possibilities, enabling you to meet changing market demands.
| production board(mm) | 1.400 x 1.100 | |
| production area (mm) | 1.300 x 1.050 | |
| min. product height (mm) | 25 | |
| max. product height (mm) | 400 | |
| dead weight approx. (kg) | 22.500 | |
| Paver 10X20X6 without facemix without face mix | cycle time | 13 |
| Qty stones per form | 54 | |
| Paver 10X20X6 with facemix with face mix | cycle time | |
| Qty stones per form | 54 | |
| Hollow Block 20X40X20 | cycle time | |
| Qty stones per form | 12 | |
| production board(mm) | 1.400 x 1.100 | |
| production area (mm) | 1.300 x 1.050 | |
| min. product height (mm) | 25 | |
| max. product height (mm) | 400 | |
| Production capacities are calculated at 85% and depend on machine settings, concrete mixes used, raw materials, throughput, mold characteristics, and the manufacturing documentation used. We reserve the right to make technical changes. | ||
| Maximum panel depth (mm) | 1100 |
| Maximum panel width (mm) | 1400 |
| Minimum production height (mm) | 25 |
| Maximum production height (mm) | 400 |
| Mechatronic, frequency control | Standard |
| 4 load-bearing block height stops | Option |
| Screw-type load-bearing clamp | Standard |
| Pneumatic load-bearing clamp | Option |
| Straight cross cleaner for load-bearing blocks | Option |
| Pneumatic mold clamping | Standard |
| Hydraulic function for mold flaps | Option |
| Manual mold change | Standard |
| Mold change crane | Option |
| Colormix core concrete drawer | Option |
| Core concrete silo with PA/Hardox lining | Option |

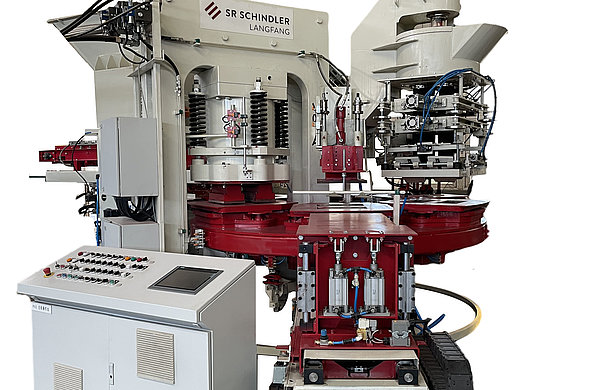

UNI 500 C Hermetic Injection Moulding Machine
The UNI 500 C hermetic injection moulding machine is based on a design concept that prioritises reliability and durability whilst combining flexibility and efficiency to ensure stable production.
Design details such as the servo drive system for the rotary table help to shorten the moulding cycle whilst minimising wear – ensuring consistent production output and a long service life.
| Station Number | 6 | ||
| Machine weight (kg) | 1.900 | ||
| Production area (mm) | 700x700 | ||
| Min. product height (mm) | 25 | ||
| With normal Filter | 40 | ||
| Max. Production capacity in meter / 8 h shift | 2.400 | ||
| Useful Production Area (mm) | 600x600 - 1 plate | ||
| 500x500 - 1 plate | |||
| 400x200 - 2 plates | |||
| 300x300 - 2 plates | |||
| Production capacities are calculated at 85% and depend on machine settings, concrete mixes used, raw materials, throughput, mold characteristics, and the manufacturing documentation used. We reserve the right to make technical changes. | |||
| Maximum board depth (mm) | 1100 |
| Maximum board width (mm) | 1400 |
| Minimum production height (mm) | 25 |
| Maximum production height (mm) | 400 |
| Mechatronic, frequency control | Standard |
| 4 load-bearing brick height stops | Option |
| Load clamping: bolted | Standard |
| Load clamping: pneumatic | Option |
| Straight cross cleaner for load | Option |
| Mold clamping: pneumatic | Standard |
| Hydraulic functionfor mold flaps | Option |
| Manual mold change | Standard |
| Mold change crane | Option |
| Colormix core concrete drawer | Option |
| Core concrete silo lining: PA/Hardox | Option |

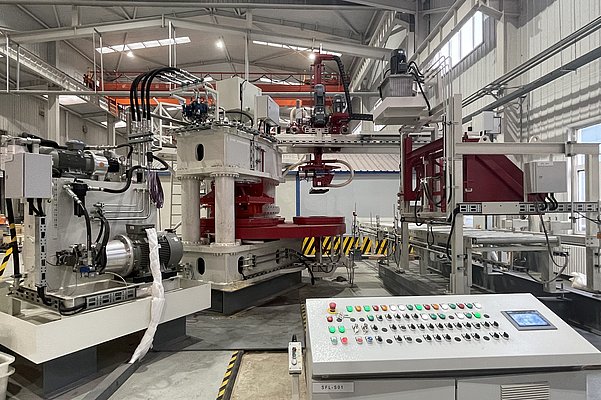

WETPRESS 600 tonnes
The WETPRESS 600-tonne wet press has been developed to maximise efficiency, minimise waste and optimise resource utilisation in wet-cast concrete production.
This makes the system a strategic asset for increasing throughput and boosting profitability – whilst ensuring that every product
manufactured, including kerbstones, reflects a commitment to quality and efficient production.
| Station Number | 3 |
| Max. Pressure | 600 t |
| Cycle Time | 40 s |
| Min. Product Height | 50 mm |
| Max. Product Height | 250 mm |
| Production Area | 1000 mm x 600 mm |
| Installed Power | 65 kw |
| Power Supply | 380 v / 50 Hz |
| Product Category | Concrete Curbstones, Slabs, etc. |
| Production capacities are calculated at 85% and depend on machine settings, concrete mixes used, raw materials, throughput, mold characteristics, and the manufacturing documentation used. We reserve the right to make technical changes. | |
| Maximum board depth (mm) | 1100 |
| Maximum board width (mm) | 1400 |
| Minimum production height (mm) | 25 |
| Maximum production height (mm) | 400 |
| Mechatronic, frequency control | Standard |
| Load-bearing brick height stops (4 pieces) | Option |
| Screw-type load clamping | Standard |
| Pneumatic load clamping | Option |
| Straight cross cleaner for load | Option |
| Pneumatic mold clamping | Standard |
| Hydraulic function for mold flaps | Option |
| Manual mold change | Standard |
| Mold change crane | Option |
| Colormix core concrete drawer | Option |
| Core concrete silo lining: PA/Hardox | Option |
| Core concrete filling car with filling grid, cylinder drive | Standard |
| Pneumatic scraper for face concrete filling car | Option |
| Face concrete filling car with smoothing roller | Option |
| Face concrete Colormix drawer | Option |
| Face concrete silo lining: PA/Hardox | Option |
| Electric vertical adjustment of feeder | Option |
| Pulling plate device on board conveyor | Option |
| Seperate core pulling device | Option |
| Swiveling Styrofoam insert | Option |
| Cooling tower for hydraulics | Option |

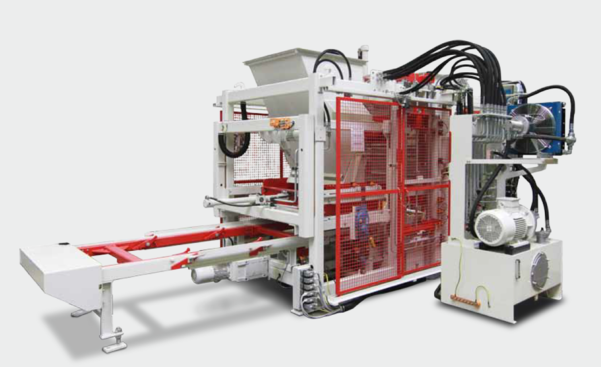

MULTIMAT RH 500 C Concrete Block and Paving Stone Machine
The MULTIMAT RH 500 C concrete block and paving block machine combines traditional high-performance technology in a compact design with advanced electronic, pneumatic and mechanical components.
It is ideal for those starting out in production or as a specialised production line for an expanding manufacturing facility – whilst offering reliable performance and flexible product manufacturing.
Value-adding machinery
With our value-adding machinery for paving stones, slabs, kerbstones and steps, you can enhance the appearance and surface quality of your products.
By treating the top layer, the system brings out the natural elegance of high-quality aggregates – enabling you to produce premium concrete products that stand out clearly from the competition.
| Machineries | Curling & Shotblasting (Basic & MID Level) |
| Technology Origin | SR S (Germany) |
| Production Origin | China |
| Machine Features | Cost Effective |
| 墙 | High-level Safety Standard |
| 生 | High-quality Components |
| Product Category | Concrete Blocks & Pavers |
| Concrete Slabs | |
| Concrete Curbstones | |
| Production capacities are calculated at 85% and depend on machine settings, concrete mixes used, raw materials, throughput, mold characteristics, and the manufacturing documentation used. We reserve the right to make technical changes. | |
| Maximum board depth (mm) | 1100 |
| Maximum board width (mm) | 1400 |
| Minimum production height (mm) | 25 |
| Maximum production height (mm) | 400 |
| Mechatronic, frequency control | Standard |
| Load-bearing brick height stops (4 pieces) | Option |
| Screw-type load clamping | Standard |
| Pneumatic load clamping | Option |
| Straight cross cleaner for load | Option |
| Pneumatic mold clamping | Standard |
| Hydraulic function for mold flaps | Option |
| Manual mold change | Standard |
| Mold change crane | Option |
| Colormix core concrete drawer | Option |
| Core concrete silo lining: PA/Hardox | Option |
| Core concrete filling car with filling grid, cylinder drive | Standard |
| Pneumatic scraper for face concrete filling car | Option |
| Face concrete filling car with smoothing roller | Option |
| Face concrete Colormix drawer | Option |
| Face concrete silo lining: PA/Hardox | Option |
| Electric vertical adjustment of feeder | Option |
| Pulling plate device on board conveyor | Option |
| Separate core pulling device | Option |
| Swiveling Styrofoam insert | Option |
| Cooling tower for hydraulics | Option |
WHAT TOPWERK LANGFANG
DELIVERS FOR YOU
Service & Spare Parts on Site
Local after sales support and spare parts supply – with a warehouse in China.
Consulting with Local Market Expertise
Experienced sales team with network – from the request to the finished project.
Production of Matrices in China
In-house manufacturing with 1,500+ designs for sophisticated surface finishes.
OUR TEAM
Tao Zhang
CEO
Email: tao.zhang@topwerk.cn
Erich Wei
Head of After Sales
Email: erich.wei@topwerk.cn
Telephone: +86 135 0316 5251
Kevin Zhang
Sales Department
Email: kevin.zhang@topwerk.cn
Telephone: +86 137 5279 5440
Guohui Li
Sales Department
Email: guohui.li@topwerk.cn
Telephone: +86 159 3216 0939
Daniel Auernig
COO
Email: daniel.auernig@topwerk.cn
Wenling Jin
Spare Parts Specialist
Email: wenling.jin@topwerk.cn
Telephone: +86 139 3064 4187
Peter Chen
Sales Department
Email: peter.chen@topwerk.cn
Telephone: +86 133 1117 0937
PERFORMANCE THAT COUNTS
PROJECTS FINISHED
SUCCESSFULLY
From the initial consultation to commissioning — with a local contact person and short communication channels.
PRODUCTIVITY
THROUGH TRAINING
Training for operators and maintenance personnel: best practices, shorter setup times, more stable processes.
AVAILABILITY THROUGH
LOCAL SERVICE
After-sales support provided by our on-site team and replacement parts from our warehouse in China.
READY FOR
INNOVATION IN
CHINA?
