MODULAR PRODUCTION SYSTEM

ATLAS

PRINZING PFEIFFER

ATlAS

MODULAR PRODUCTION SYSTEM.

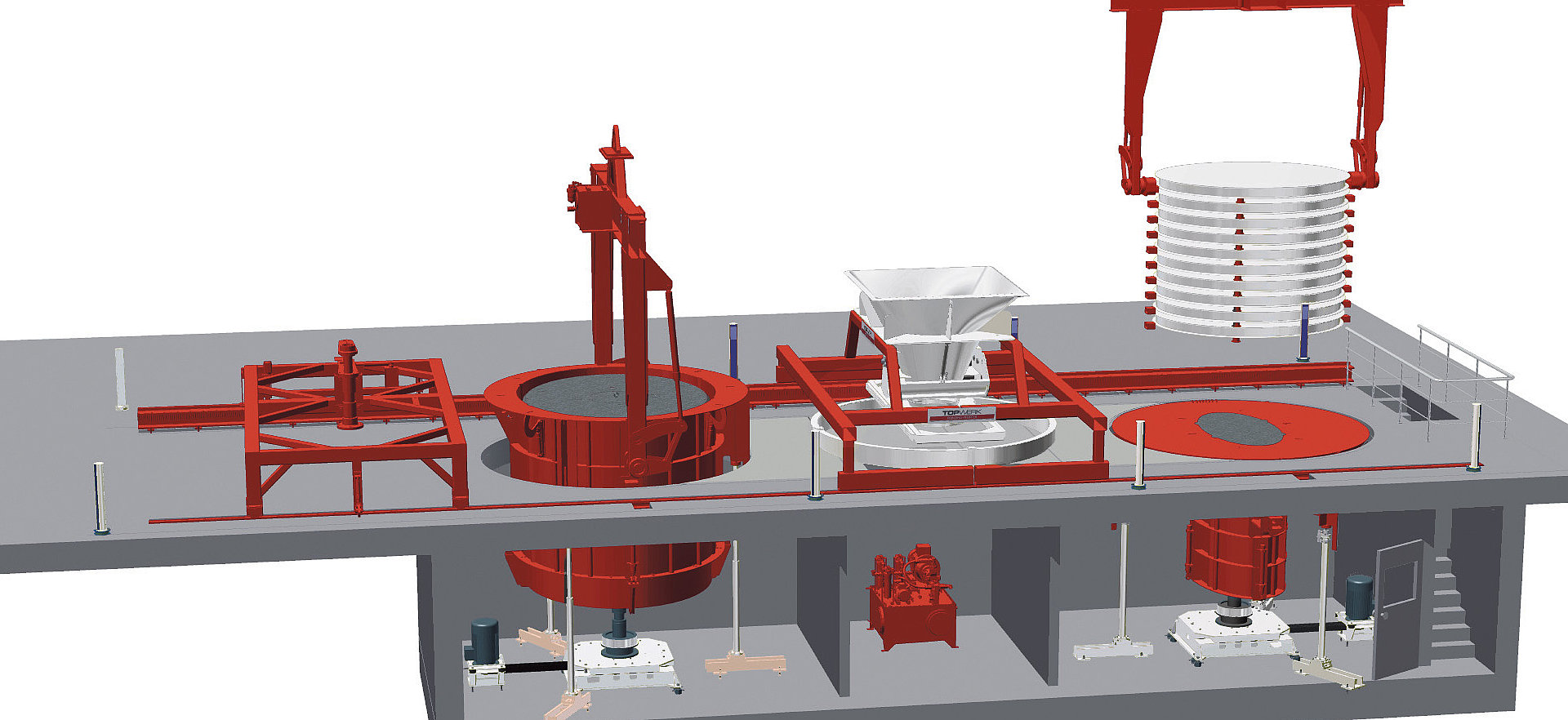

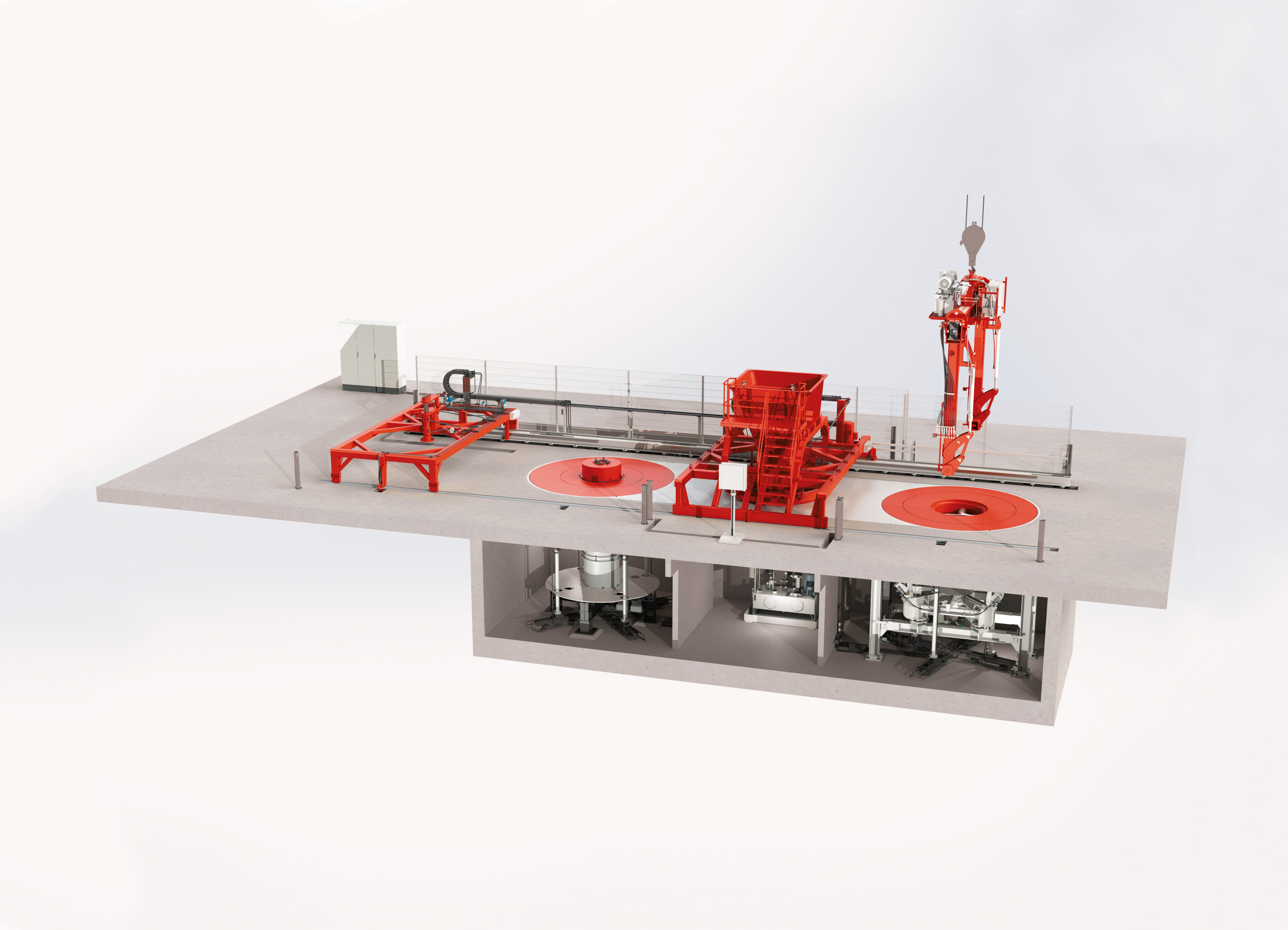

The flexible ATLAS production system is a modular system consisting of various individual components such as feeders, compaction units, presses and transport systems.

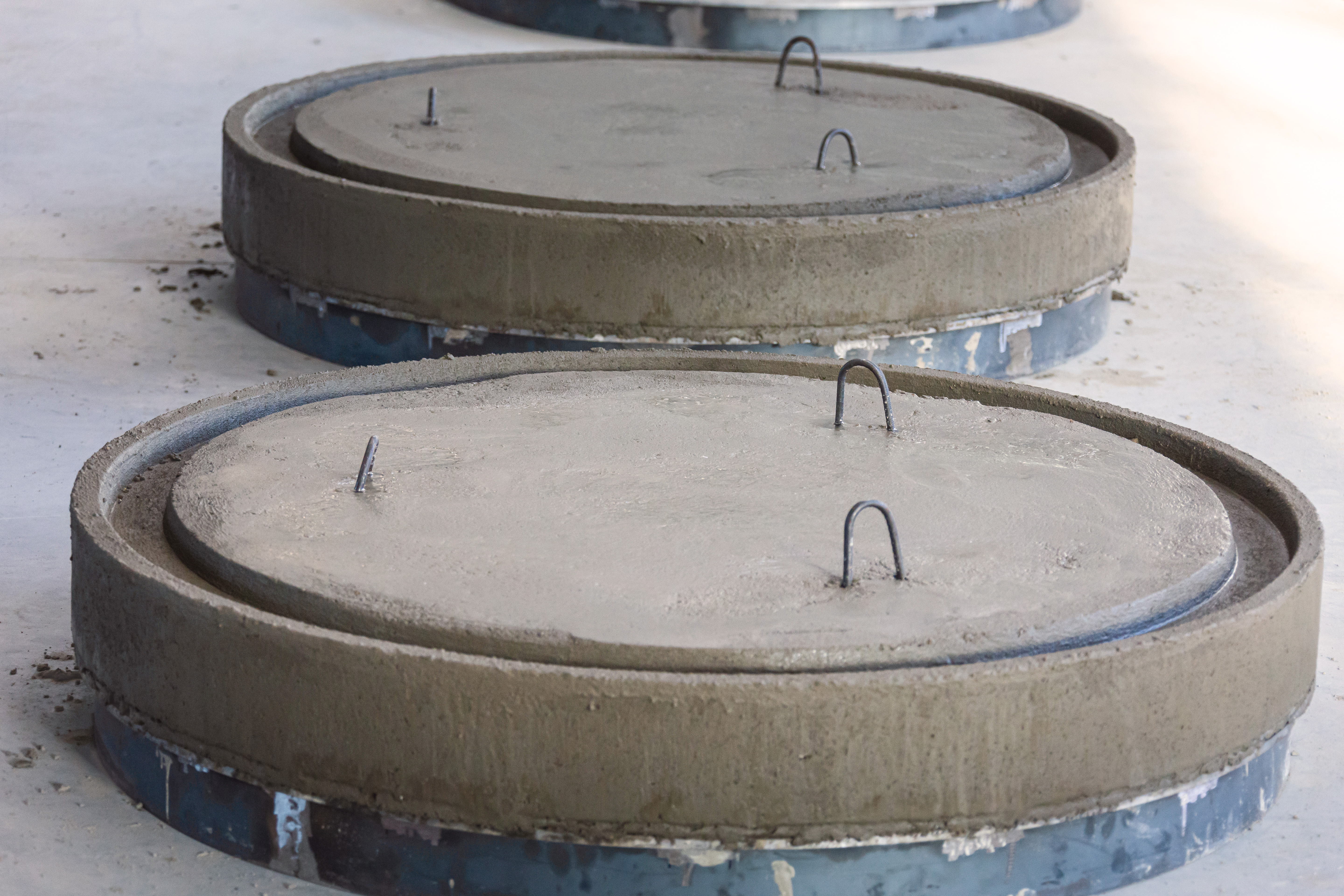

Depending on the combination of the modular components of the ATLAS machinery, many round and square
concrete products between i. d. 250 mm and 3000 mm can be produced.

ATLAS	200/100	200/250	350/300
min. internal product diameter (mm)	250
max. product outer diameter circular and square (mm)	2,300 (1,620 x 1,620)	2,300 (1,620 x 1,620)	3,800 (2,680 x 2,680)
max. overall height (mm)	1,000	2,500	3,000
max. product weight (kg)	5,000		8,000

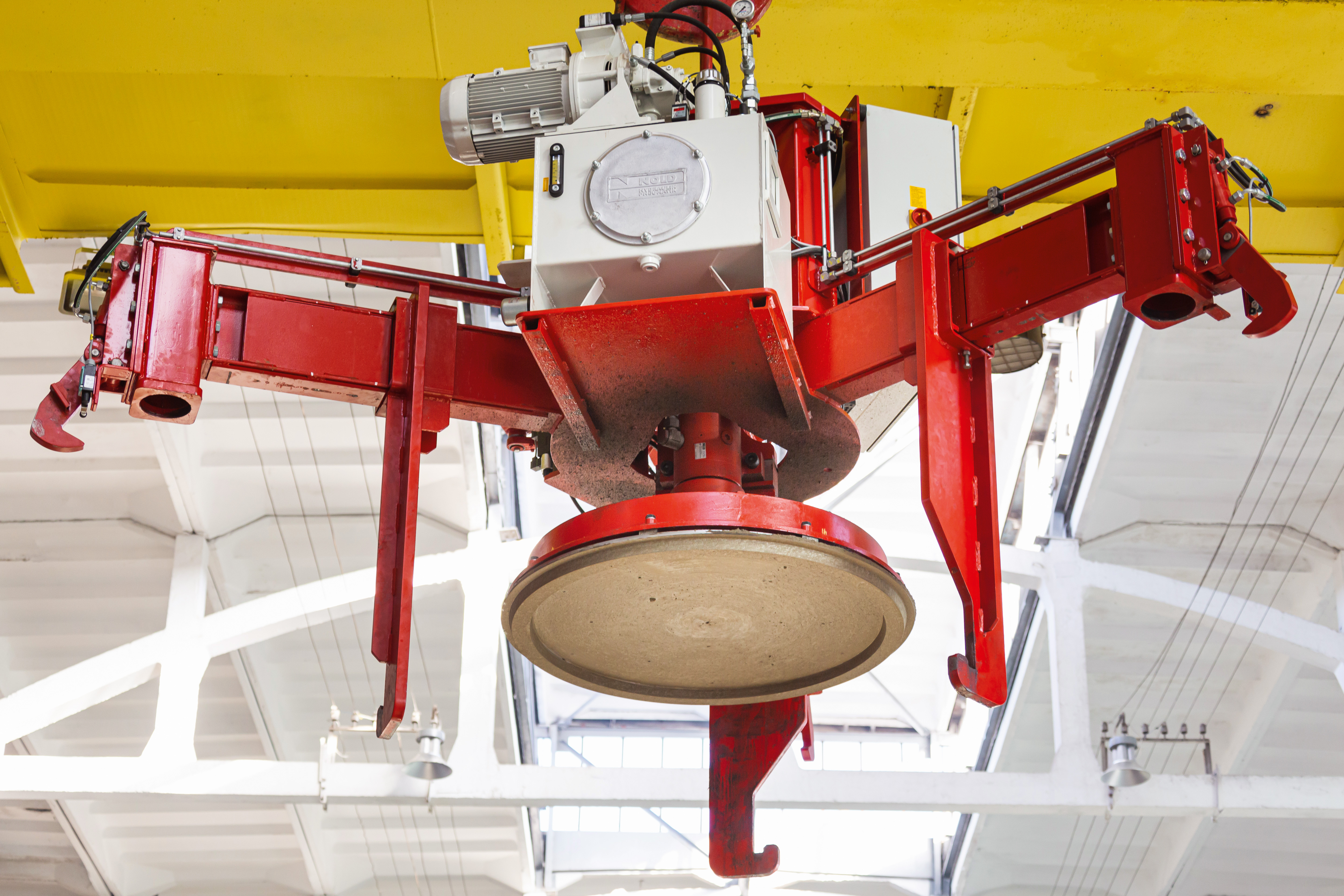

Can be extended with handling systems	yes

HIGHLIGHTS

Single or double production
Lower investment costs compared to automatic machines
Central vibrator with oil lubrication for higher speed (rpm)
Demoulding of the products at the curing area increases product quality
Intuitive machine control

PRODUCT BROCHURE (PDF)

machines and plants for pipes, manholes and precast concrete elements

COMPLETE SYSTEMS

Please discuss your requirements with us - we'll design the right solution for you.

OTHER MACHINES FOR PRECAST CONCRETE ELEMENTS

BLIZZARD

MISTRAL

PRIMUSS 2.0

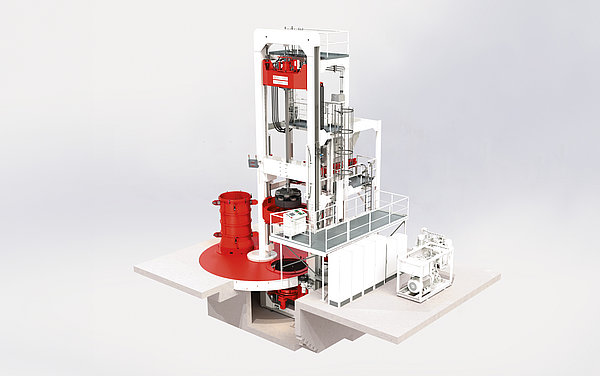

RADIAL PRESS RP
