PIPE AND MANHOLE MACHINE

MISTRAL

PRINZING PFEIFFER

mISTRAL

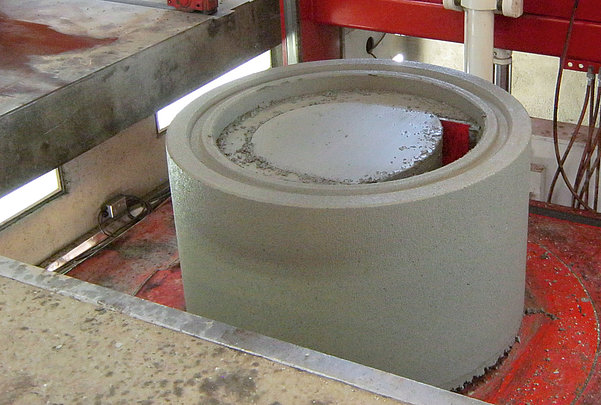

AUTOMATIC CONCRETE PIPE AND MANHOLE MACHINE.

Producing pipes and manhole elements on the same machine enables a high degree of flexibility. An optimized demoulding process leads to a short cycle time.

A variety of other concrete products can also be produced on the MISTRAL. The complete production cycle is below ground, so that the annoyance caused by noise is low and operator security is ensured.

MISTRAL	150/250	200/250
min. product inner diameter (mm)	250
max. product outer diameter, circular and square (mm)	1,850 (1,300 x 1,300)	2,300 (1,620 x 1,620)
max. overall height (mm)	2,500
max. product weight (kg)	8,000
Can be extended with handling systems	yes

HIGHLIGHTS

Flexible, automatic machine for the production of concrete pipes, manhole elements and other products up to length 2.5 m
Patented GEBA process: exact height, precisely metered concrete application, homogeneous compaction, less wear, reduced cycle time
Short cycle times due to automatic demoulding in the machine (special demoulding process)
Optimized mould change processes for quick changeover between products
Central vibrator with oil lubrication for higher speed (rpm)
