PRODUCTION LINE FOR LARGE-FORMAT PARTS

ZELUS

PRINZING PFEIFFER

zelus

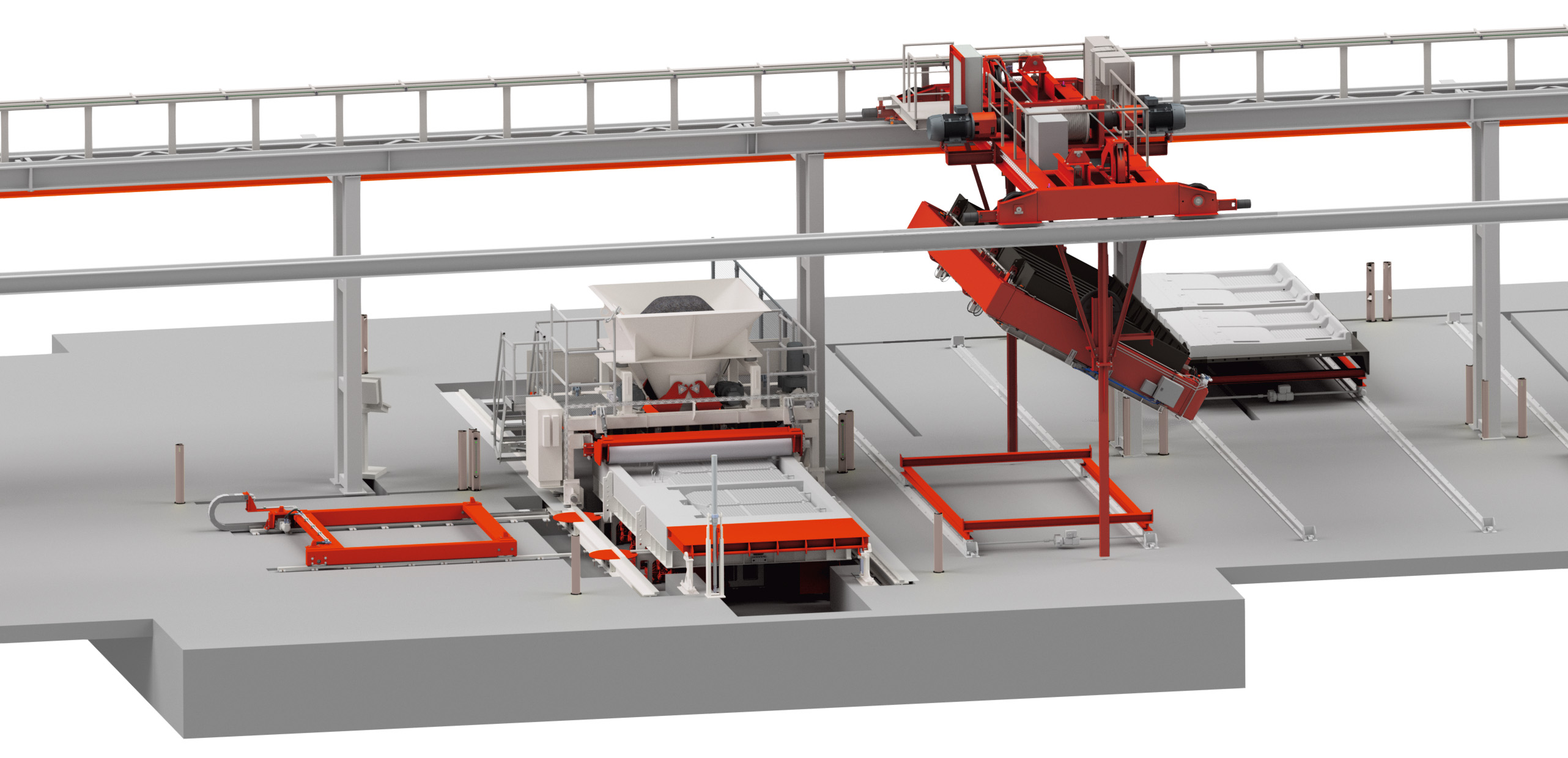

AUTOMATIC PRODUCTION LINE FOR LARGE-FORMAT CONCRETE PARTS.

The ZELUS is a production line with automatic mould and product handling. Depending on the design, production with a wet- or dry-cast process is possible.

It is designed for fully automatic filling of large-format moulds for a wide range of product geometries, with precise concrete dosing.

ZELUS	400/25	500/20	600/30
Production Area (mm)	4,100 x 1,300	4,700 x 3,000	6,000 x 3,000
max. height (mm)	250	180	300
max. product weight (kg)	1,000	4,000	10,000
Can be extended with handling systems	yes
SCC version available	yes

HIGHLIGHTS

Fully automatic production line for processing SCC or dry cast

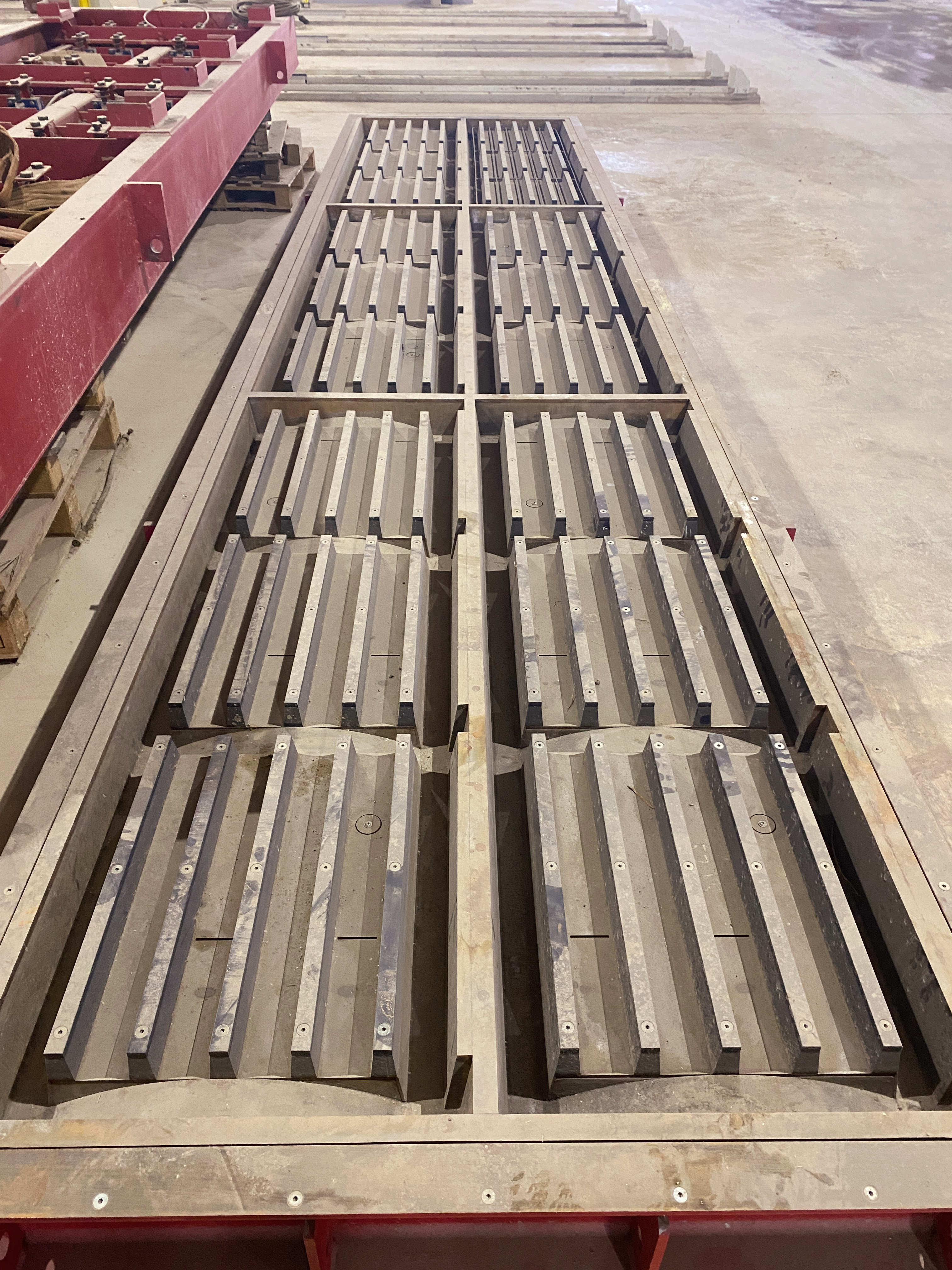

Fully automatic filling of large-format moulds for a wide range of geometries
Precise concrete dosing into the moulds

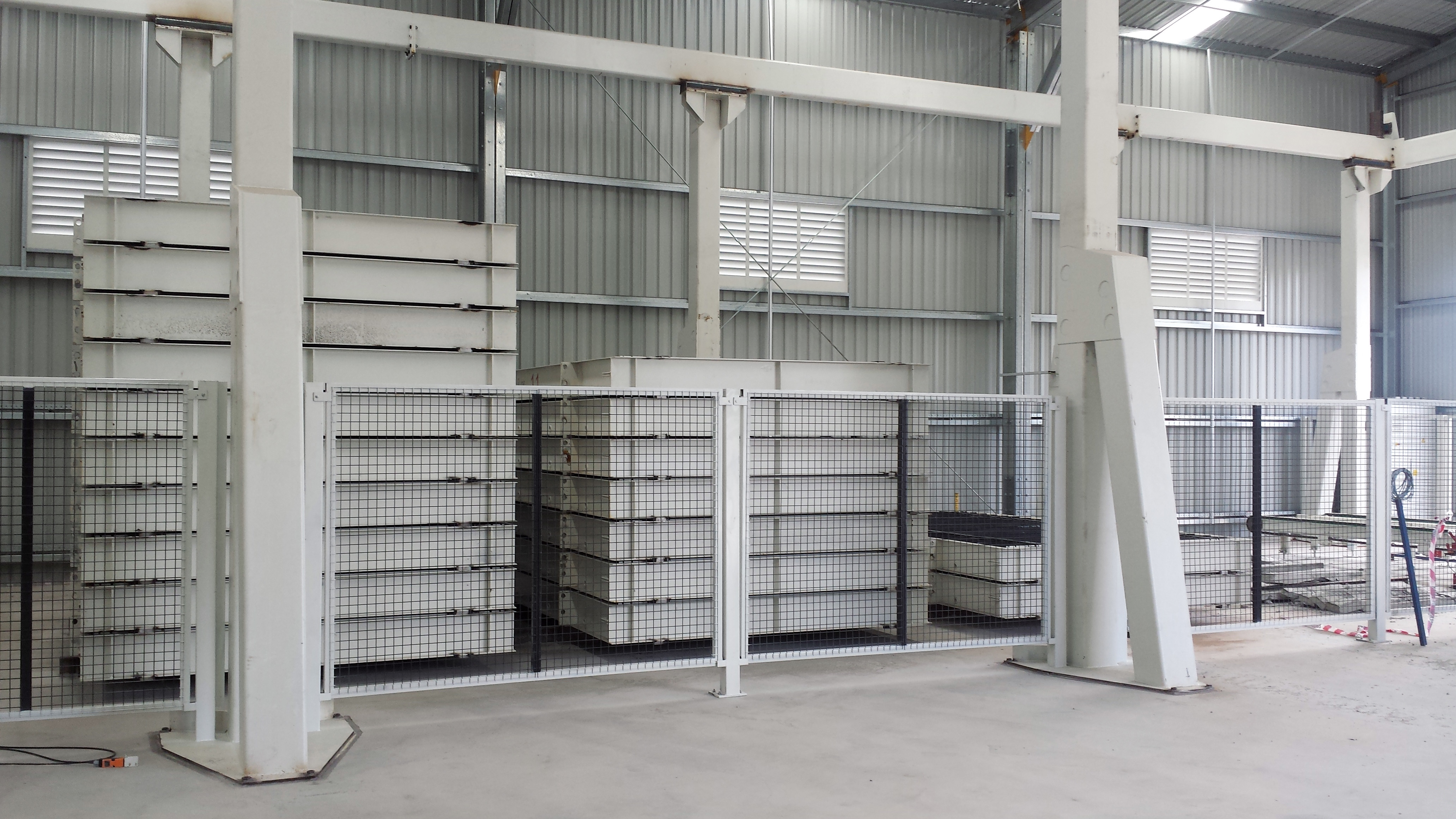

Automatic mould storage or pallet storage
Intuitive machine control

PRODUCT BROCHURE (PDF)

Machines and plants for pipes, manholes and precast concrete elements

COMPLETE SYSTEMS

Please discuss your requirements with us - we'll design the right solution for you.
