TILTING TABLE MACHINE

BLIZZARD

PRINZING PFEIFFER

BLIZZARD

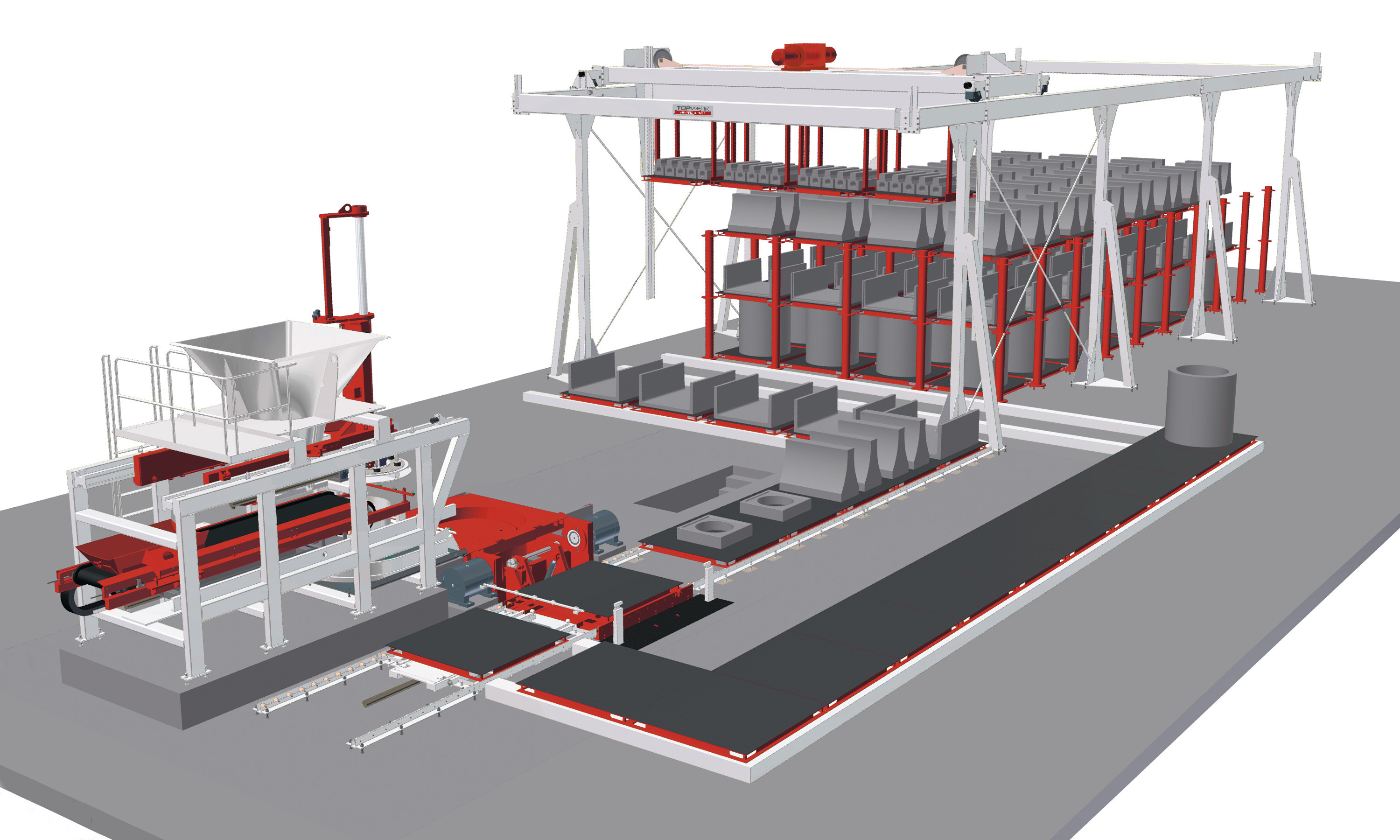

FULLY AUTOMATIC TILTING TABLE MACHINE.

The BLIZZARD is an automatic tilting table machine for the stationary production of a wide variety of products. The turning process allows products to be manufactured automatically and cost-effectively.

By the rotating tilt table process the BLIZZARD is mainly ideal for concrete parts which are at least on one side flat. This side lies onto a steel pallet after
demoulding of the fresh product.

BLIZZARD	120/65	180/130	180/150
Pallet size (mm)	1,200 x 1,200	1,800 x 1,800
Product dimensions approx. (mm)	1,100 x 1,100	1,700 x 1,700
max. overall height (mm)	650	1,300	1,500
max. product weight (kg)	500	5,000
Can be extended with handling systems	yes

HIGHLIGHTS

Automatic machine using the turning process
Quick product change by exchanging mould equipment (within 15 min)
Hydraulic mould clamping
Frequency-controlled vertical and tamper vibrators
Intuitive machine control

PRODUCT BROCHURE (PDF)

Machines and plants for pipes, manholes and precast concrete elements

COMPLETE SYSTEMS

Please discuss your requirements with us - we'll design the right solution for you.

BLIZZARD ANFRAGEN

OTHER MACHINES FOR PRECAST CONCRETE ELEMENTS

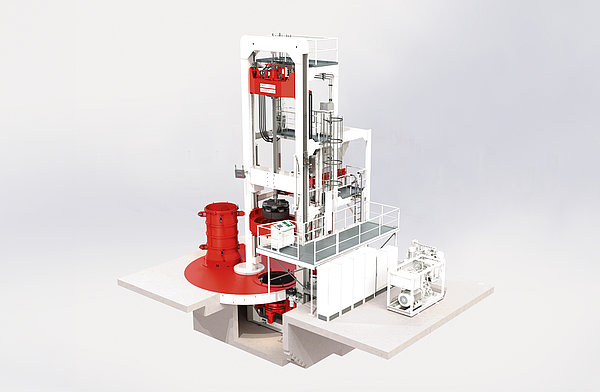

RADIAL PRESS RP
