MACHINE FOR LARGE CONCRETE PIPES AND BOX CULVERTS

VARIANT

PRINZING PFEIFFER

variant

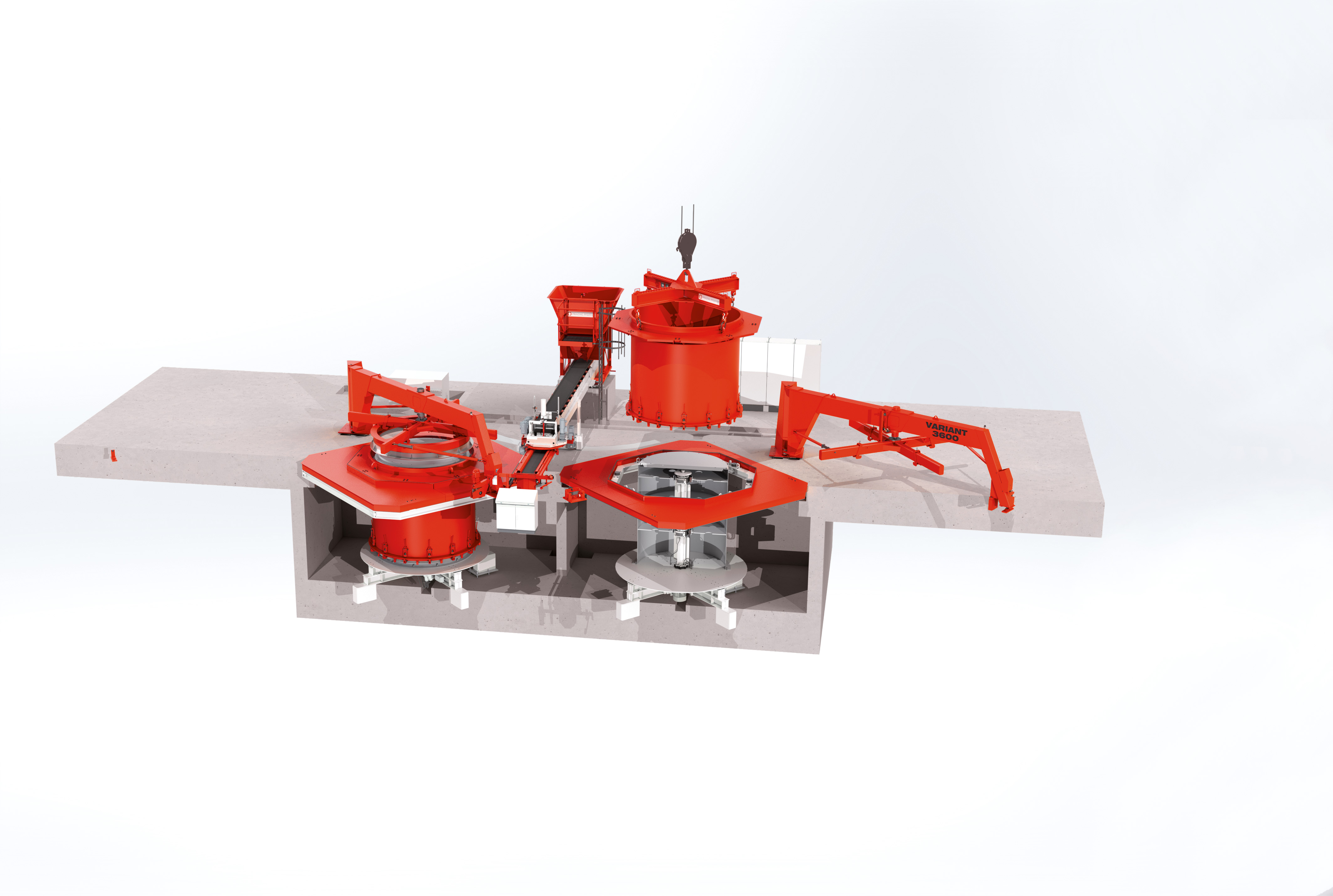

PRODUCTION PLANT FOR LARGE CONCRETE PIPES AND BOX CULVERTS.

The VARIANT is a flexibly adaptable machine that can produce a wide range of concrete and reinforced concrete products.

Its technical specifications, adaptability and efficiency make it a first-class choice for manufacturers looking to optimize and expand their production processes.

VARIANT	1500	2500	3600	6000
min. product inner diameter circular and square (mm)	300 (800 x 800)			1,600 (1,500 x 1,500)
max. product inner diameter circular and square (mm)	1,500 (1,400 x 1,400)	2,500 (2,000 x 2,000)	3,600 (3,000 x 3,000)	5,500 (4,200 x 4,200)
max. product outer diameter circular and square (mm)	1,800 (1,700 x 1,700)	3,100 (2,400 x 2,400)	4,200 (3,500 x 3,500)	6,000 (4,700 x 4,700)
max. overall height (mm)	3,500 (Standard 2,500)	3,500 (Standard 2,500)	3,500 (Standard 2,500)	2,500
Can be extended with handling systems	yes

HIGHLIGHTS

Maximum flexibility (modular principle)
Later expansion to 2-station operation possible
Powerful central vibrators for high and even concrete compaction
Automatic gap feeding for perfect coating of reinforcement cages and exact filling level
High dimensional accuracy by transporting fresh products in the outer mould to the demoulding area
