CONCRETE PIPE AND MANHOLE MACHINE

TORNADO

PRINZING PFEIFFER

Tornado

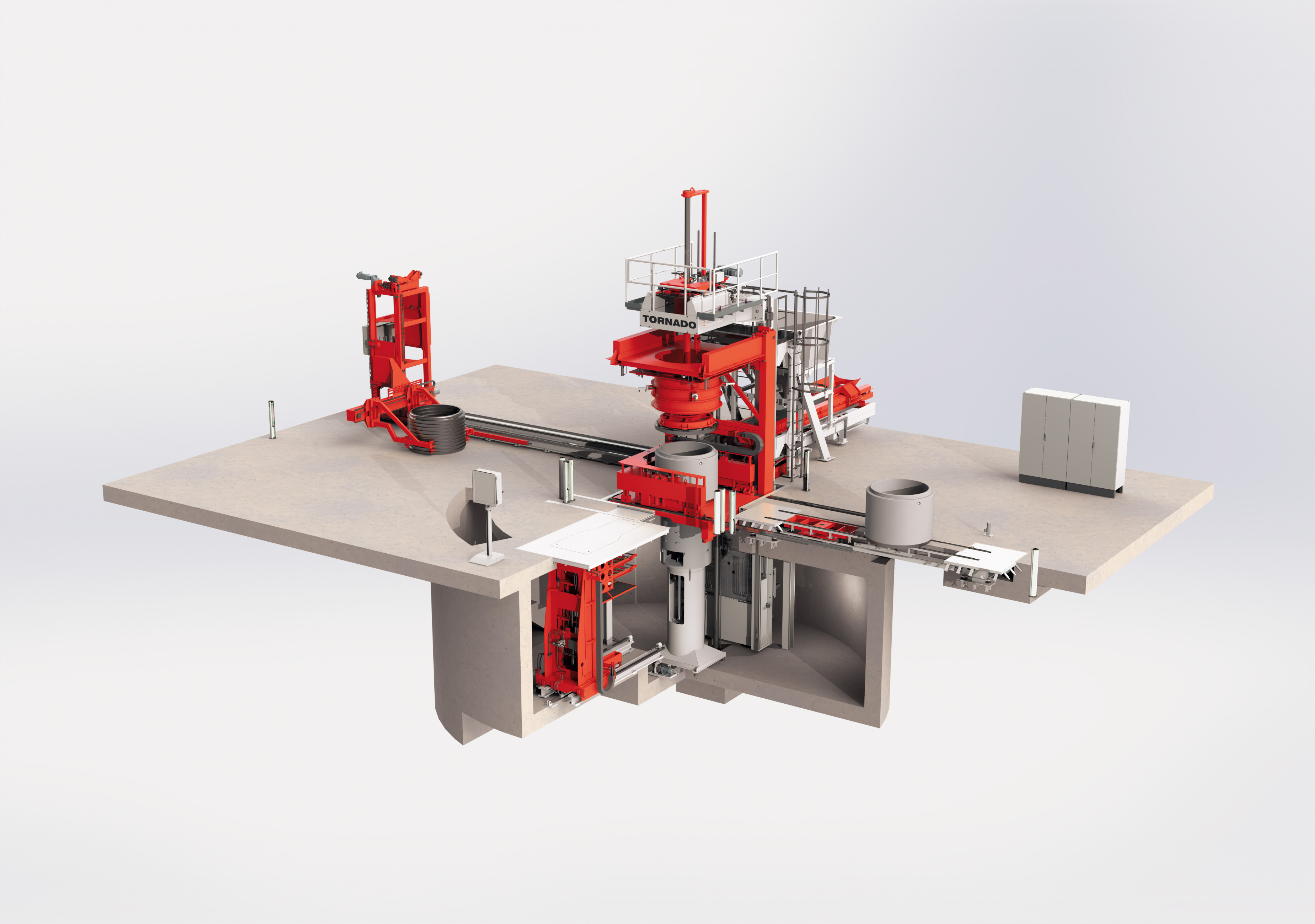

AUTOMATIC CONCRETE PIPE AND MANHOLE MACHINE.

The TORNADO is a vibration machine for the production of manholes and related precast concrete elements.

In the basic version, a wide range of products can be manufactured. Numerous optional extensions reduce manual work and simplify the production process.

TORNADO	150/150	200/150	250/150
min. inner product diameter (mm)	250
max. product outer diameter, circular and square (mm)	1,850 (1,300 x 1,300)	2,300 (1,620 x 1,620)	2,900 (2,050 x 2,050)
max. overall height (mm)	1,500
max. product weight (kg)	5,000

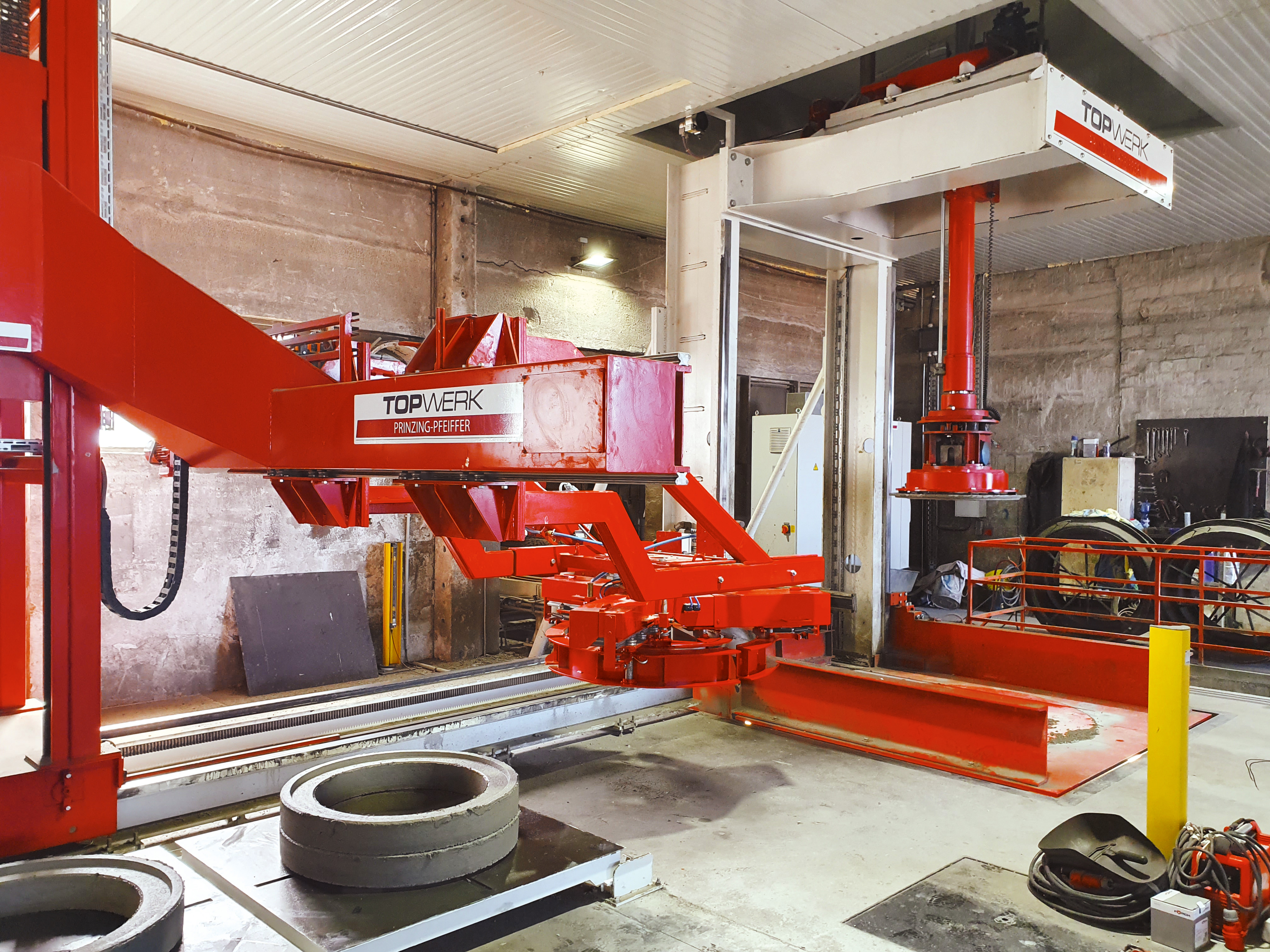

Can be extended with handling systems	yes

HIGHLIGHTS

Patented GEBA process: exact height, precisely metered concrete application, homogeneous compaction, less wear, reduced cycle time

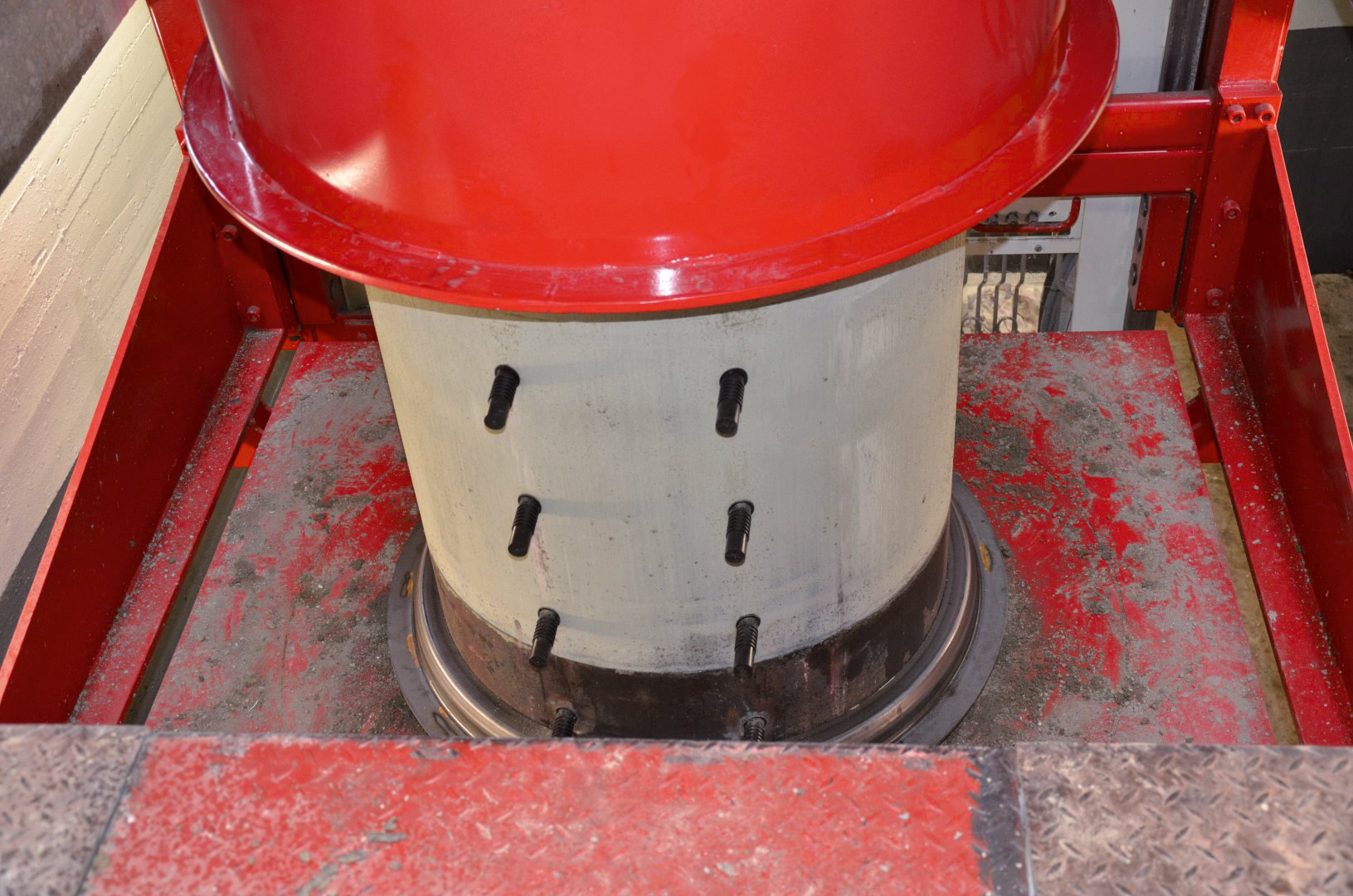

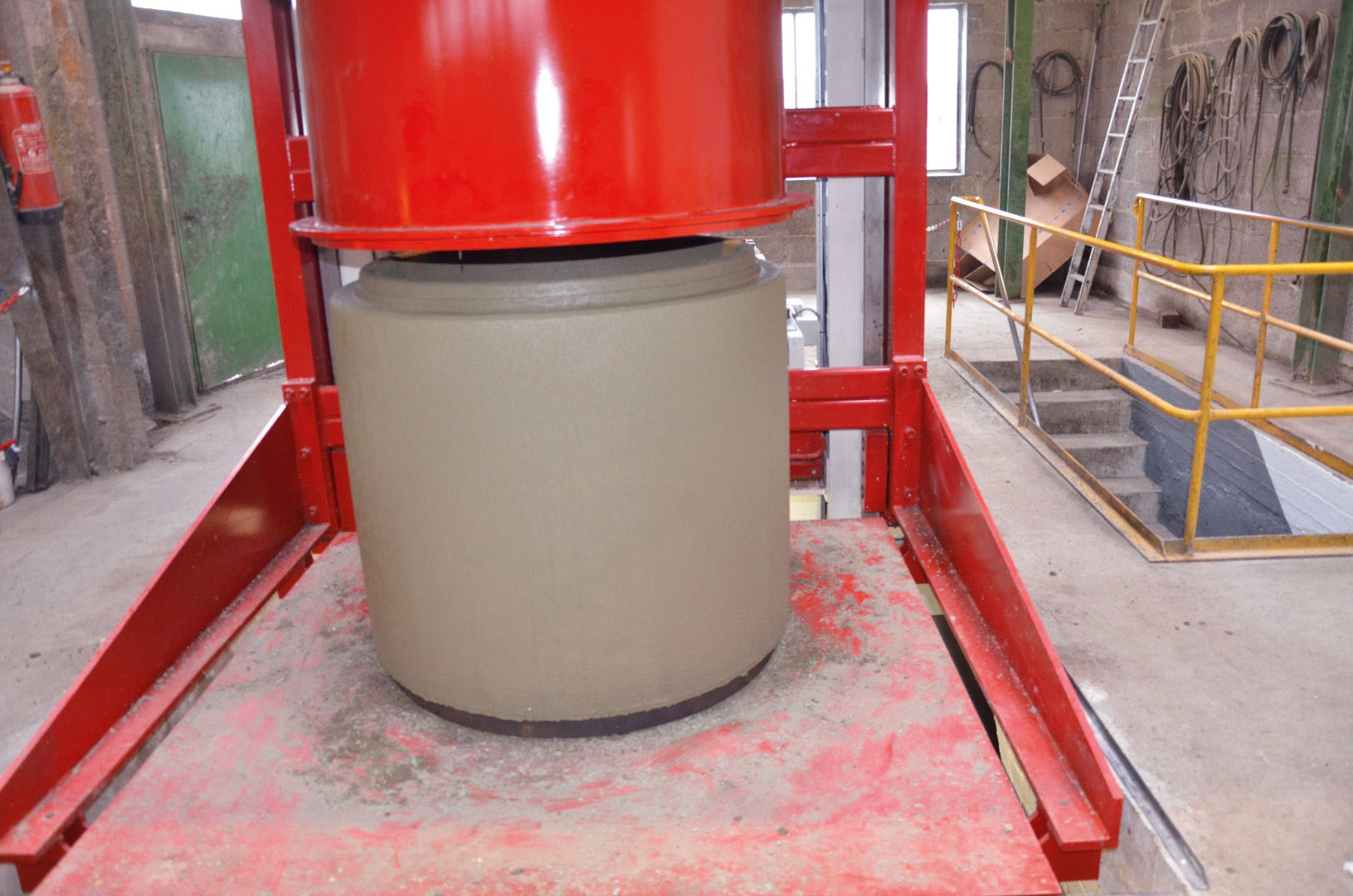

Short cycle times due to automatic demoulding in the machine (special demoulding process)
Optimized mould change processes for quick changeover between products
Central vibrator with oil lubrication for higher speed (rpm)
Intuitive machine control
