MANHOLE BASE PRODUCTION

PRIMUSS 2.0

PRINZING PFEIFFER

PRIMUSS

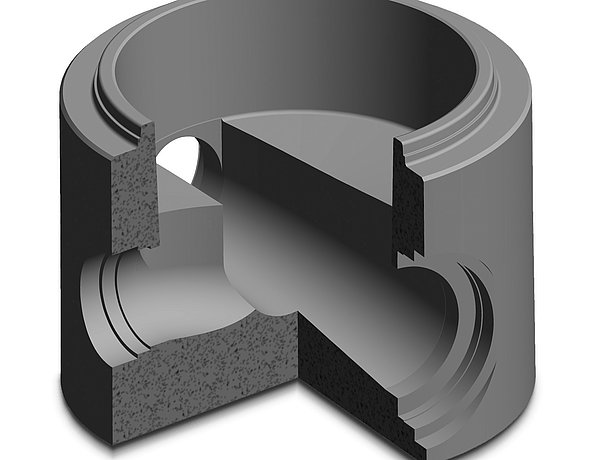

MONOLITHIC MANHOLE BASE PRODUCTION WITH VARIABLE CHANNELS.

The PRIMUSS 2.0 combines proven production technology with advanced automation for the efficient manufacturing of monolithic manhole bases with variable channels.

A key advantage of the system is the simultaneous processing of channels and connections, reducing cycle times while increasing overall production output. The PRIMUSS 2.0 processes round and square products with internal diameters starting at 600 mm (24") and supports circular outer diameters of up to 2,200 mm (86").

Two fully programmed robots work in seamless coordination, enabling parallel processing across both stations, precise handling and reliable process control.

PRIMUSS	PRIMUSS	PRIMUSS 2.0
min. internal product diameter (mm)	600
max. product outer diameter, circular and square (mm)	1,800	2,200
max. construction height (mm)	1,450	1,700
max. product weight (kg)	5,000	12,500
Can be extended with handling systems	yes

HIGHLIGHTS

Program-controlled production of any channel layout plus inlets/outlets for each pipe connection
No lost formwork elements like Styrofoam or similar materials needed
Processing of wet- and dry-cast products
Low tool and energy costs due to milling of fresh concrete; milled material can be reused
Intuitive machine control

PRODUCT BROCHURE (PDF)
