CONCRETE BLOCK MACHINE

BF 80-2 H

HESS Group

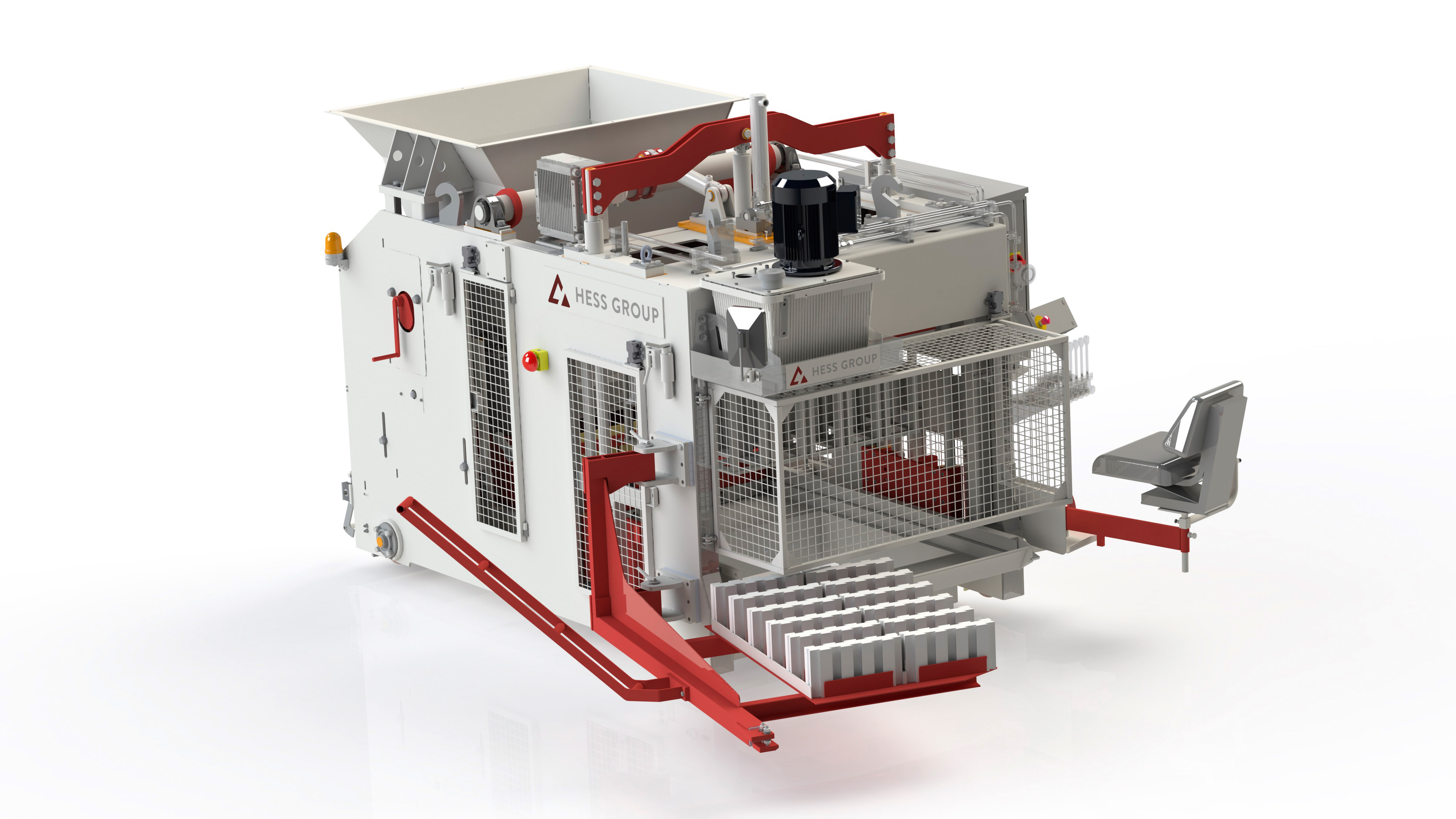

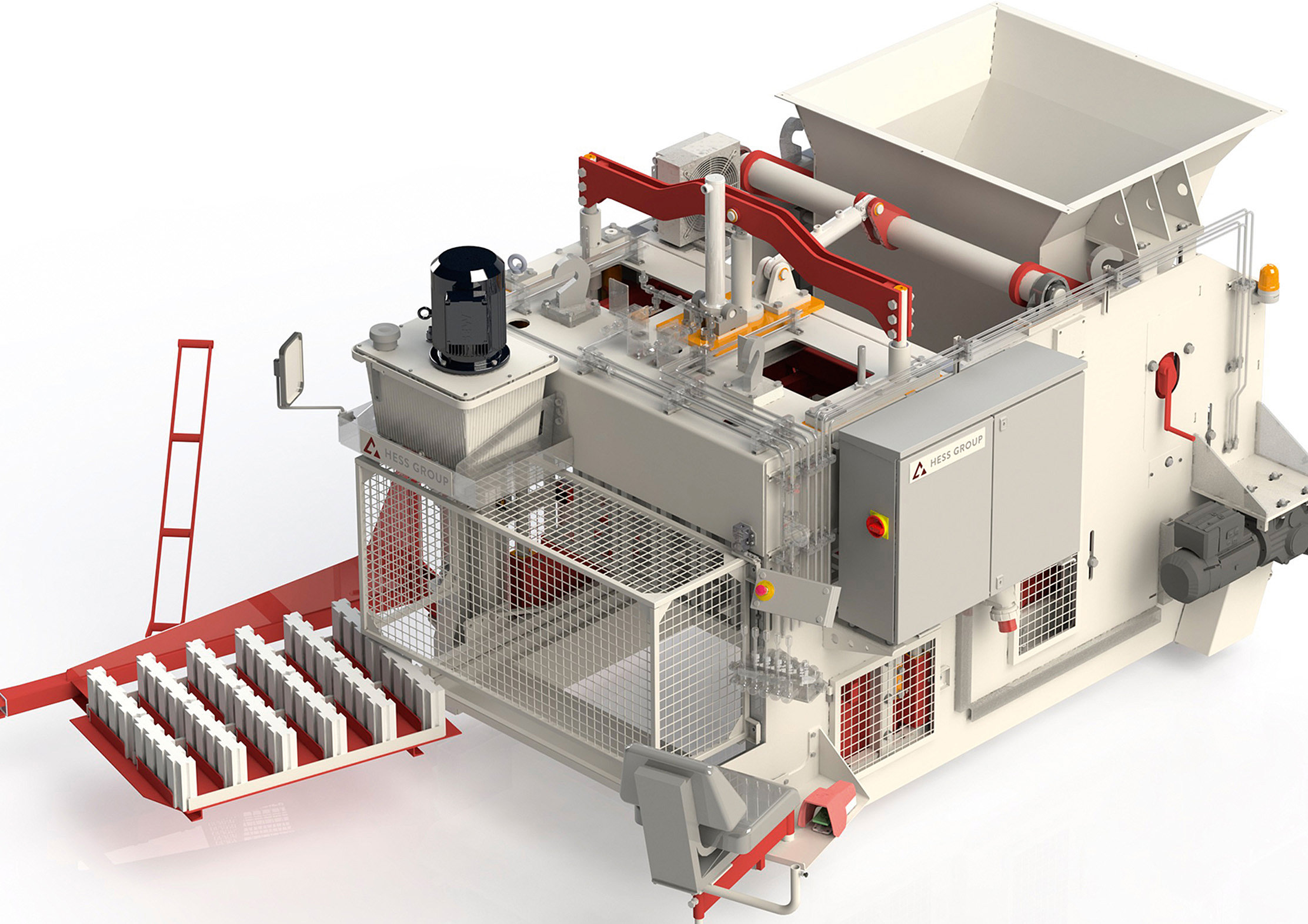

HYDROMAT BF 80-2 H

MOBILE EGG-LAYER - ROBUST MODULAR MANUFACTURING.

The HYDROMAT BF 80-2 H is a mobile egg-layer machine for the production of solid blocks, hollow blocks, curb stones, palisades and more.

The HYDROMAT BF 80-2 H produces on the concrete floor and is designed for a wide range of concrete products, including solid blocks, hollow blocks, insulated blocks, hourdi blocks, curb stones, palisades and chimney blocks. It features a filler box with central drive, mould and tamper head guidance on four columns, and vibration systems for both.

Production area (mm)**	1,250 x 1,000
Production height (mm)**	min. 190 \| max. 330
Tamper head vibration	2 frequency vibrators, each 1.1 kW
Mould vibration	2 high frequency vibrators HESS each 1.5 kW
Concrete hopper (l)	1,000
Hydraulic pressure (bar)	190
Travel gear	Gear motor, with optional integrated inverter
Total connected load (kW)	18
Weight (kg)	approx. 5,800
Electrical control	Conventional electrical control

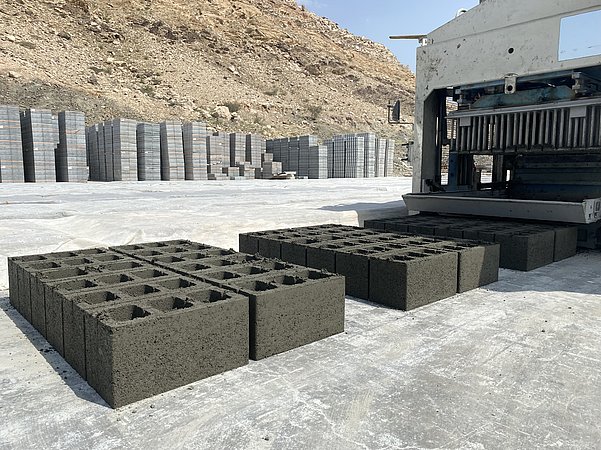

Hollow block 200x200x400mm
Products per cycle	12
Capacity	abt. 72 - 120 cycles / hour
*The production output is calculated at 85% percent shown the above table value and is significantly influenced by machine settings, the concrete mixing recipe used, the quality of raw material, mould characteristic, stone format and as this is a semi-automatic machine the performance of the operators.

HIGHLIGHTS

Mobile egg-layer machine for production on the concrete floor
Production area: 1,250 \times 1,000 mm
Production height: min. 190 mm | max. 330 mm
Vibration: 2 tamper head vibrators (each 1.1 kW) and 2 high efficient mould vibrators (HESS, each 1.5 kW)
Possible to use moulds from existing BF 80 machines

PRODUcT brochure hydromat bf 80-2 H (PDF)
