CONCRETE BLOCK AND PAVER MACHINE

RH
1500-4

HESS Group

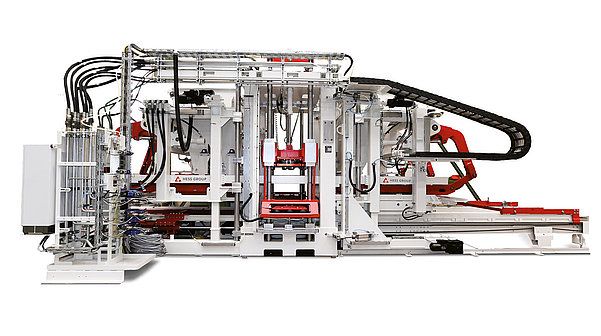

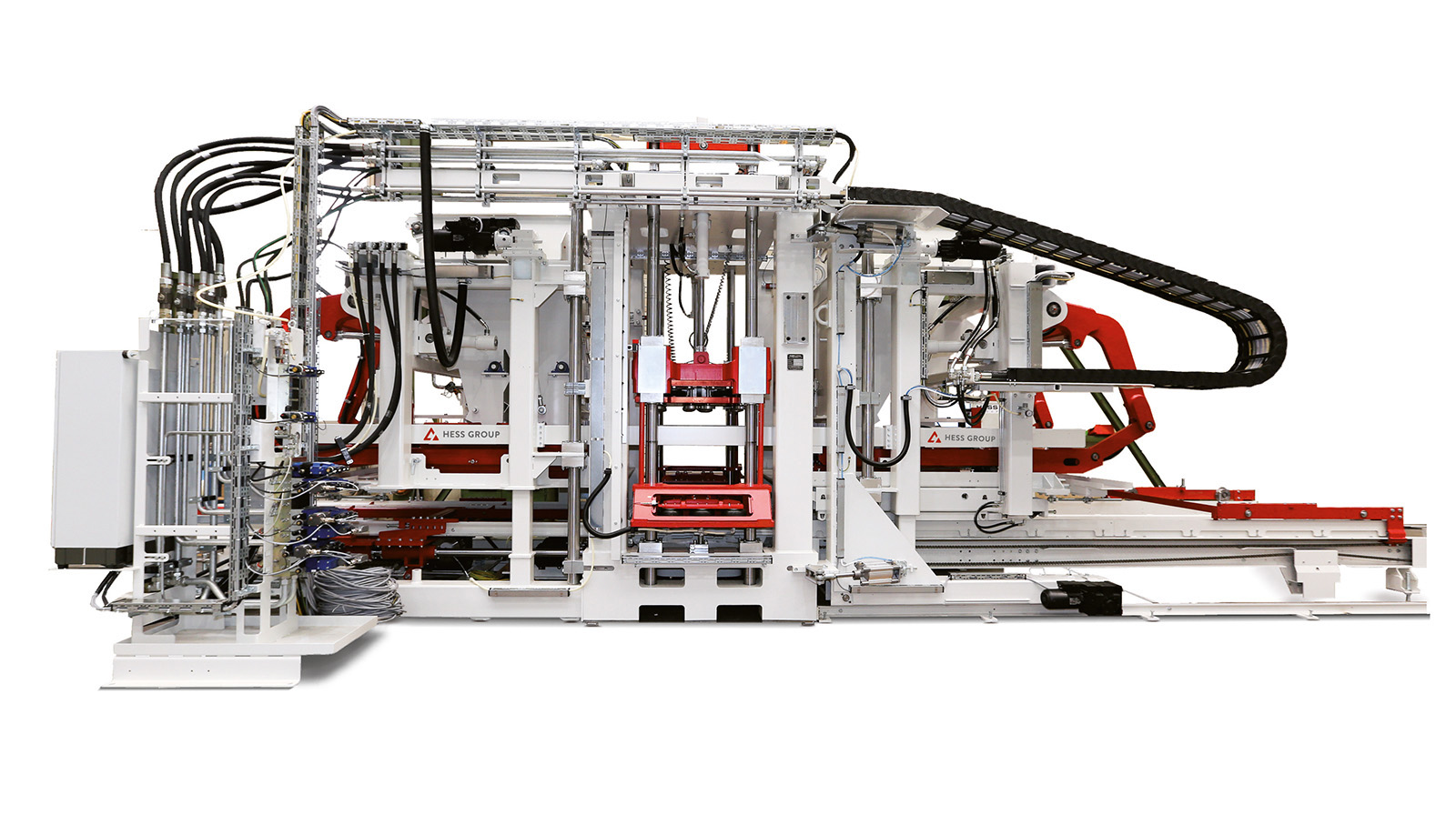

RH 1500-4

PRECISION AT HIGH PERFORMANCE.

Developed for high-performance applications, the RH 1500 impresses with short cycle times and dynamic movements.

This is made possible by the special control technology and innovative hydraulic system. The interaction guarantees reliable and efficient concrete block and paver production.

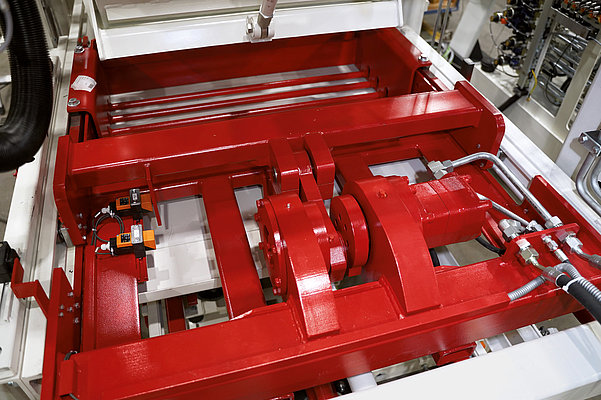

HESS RH 1500-4 fuelling grate assembly inside the machine frame.

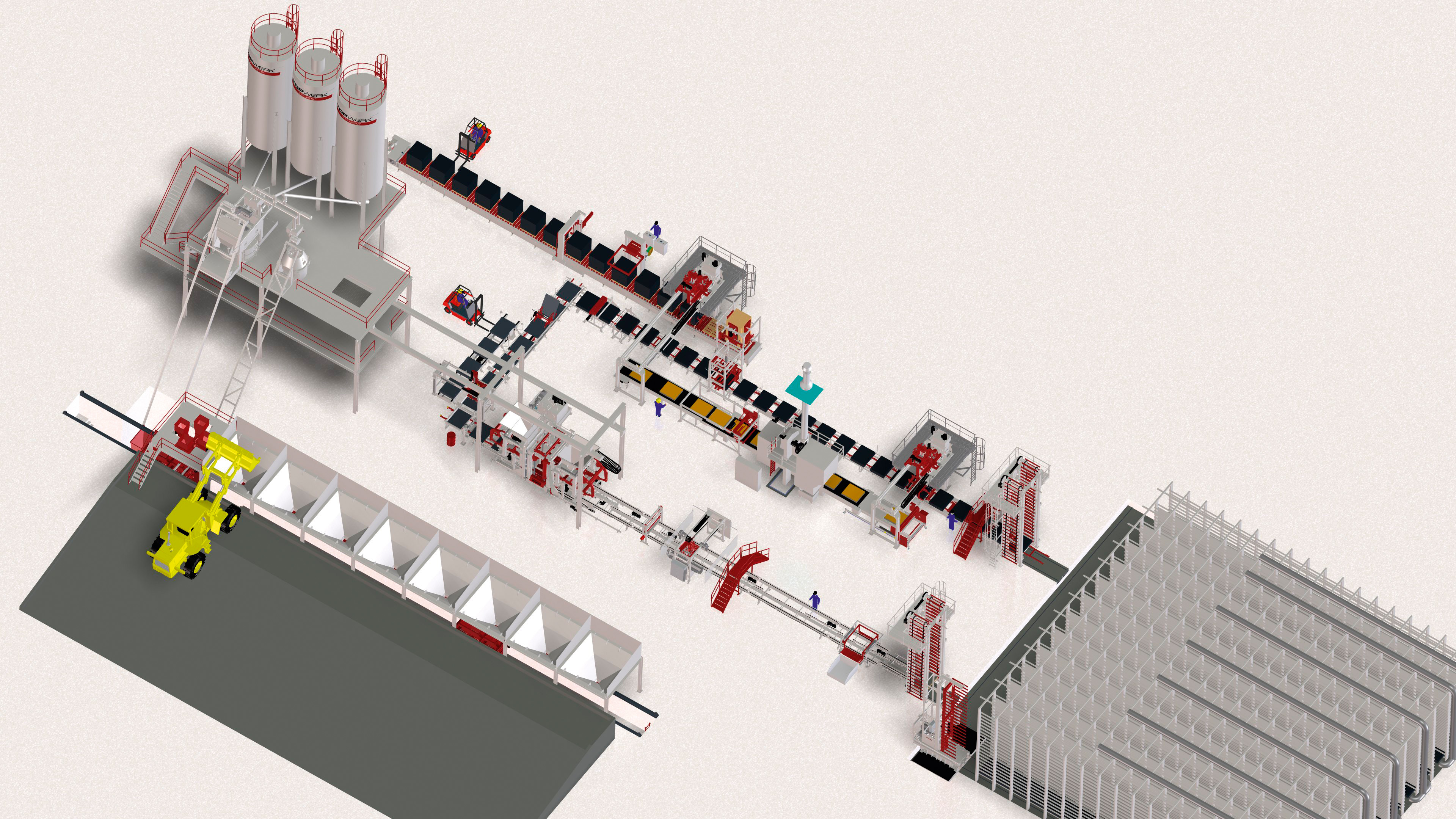

PLANT LAYOUT

1 2 3 4 5 6 7 8 9 10 11 12 13

1 Aggregate silos

2 Mixing plant

3 Machine RH 1500-4 VA

4 Washing device

5 Dumping station

6 Elevator

7 Finger car

8 Curing racks

9 Lowerator

10 Shot blasting machine

11 Cuber servo 700-2

12 Frame conveyor

13 Board buffer

		RH 1500-4 VA
Production board size (mm)**		1,400 x 1,100
Production area (mm)**		1,300 x 1,050
Min. product height (mm)		25
Max. product height (mm)		500
Dead weight in MVA Version (kg)		46,000
Paving stone 10x20x5cm without face mix:	Cycle time (s)	10.5
	m² in 8h	2,517
	Quantity of products/mold	54
Paving stone 10x20x6cm with face mix:	Cycle time (s)	12.5
	m² in 8h	2,114
	Quantity of products/mold	54
Hollow block 20x40x20cm	Cycle time (s)	14.5
	Quantity in 8h	20,258
	Quantity of products/mold	12
Production output is calculated based on 85 percent machine availability and is significantly influenced by machine settings, the concrete mixing recipe used, the quality of raw materials, the performance of other related plant equipment, mold characteristics, the stone format, and the production pallets used. Technical Data are subject to change. ** Different production board sizes available.
