CONCRETE BLOCK MACHINE

RH
500-3

HESS Group

RH 500-3

COMPACT DESIGN
– WIDE RANGE.

The compact design, robust construction, and high-quality components characterize the RH 500-3. It is universally applicable wherever reliable production is required.

The RH 500-3 is designed for reliable production of slabs, paving stones, hollow blocks, curbstones, and similar concrete products. It enables a wide product range and supports stable, reproducible production – even in small production areas.

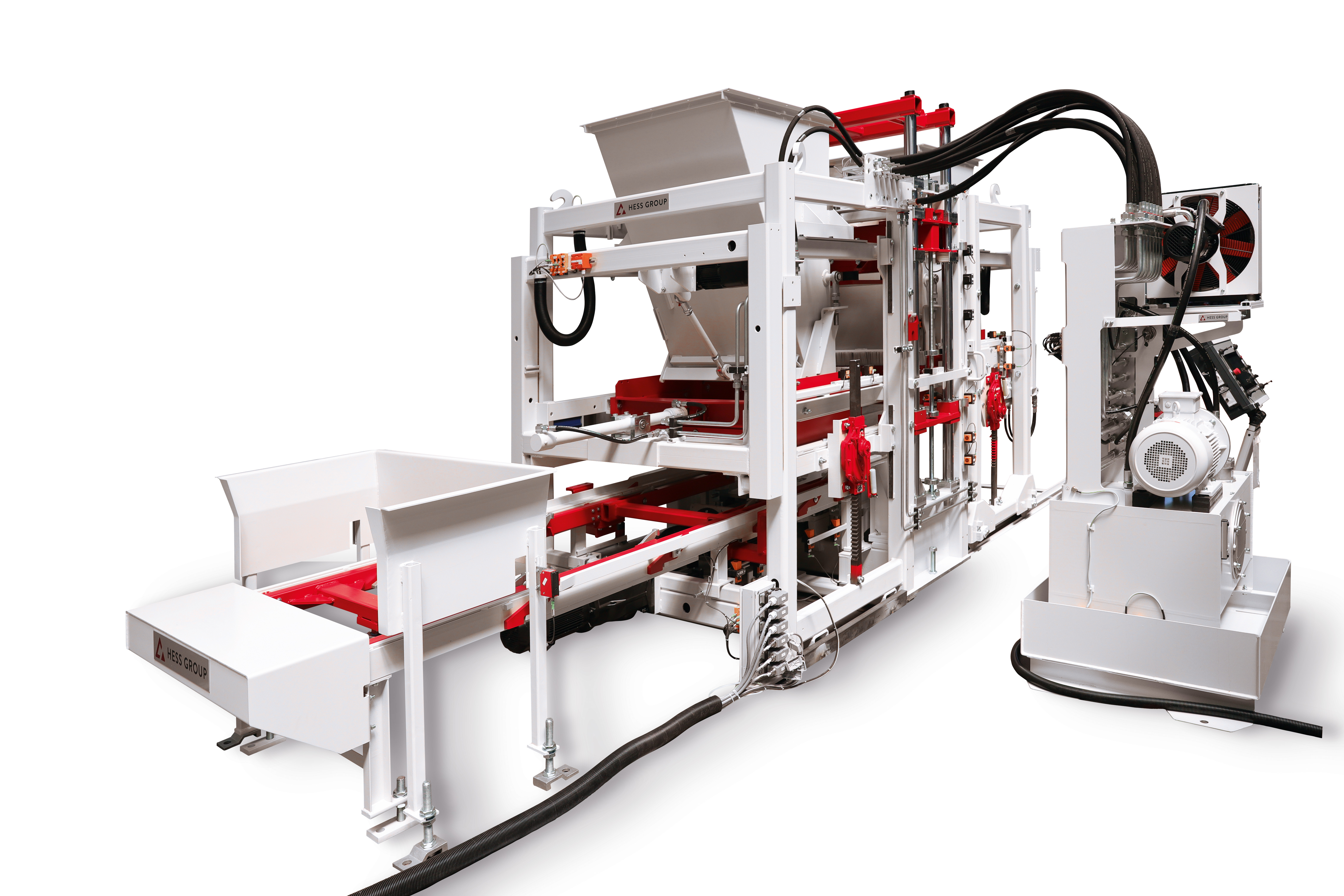

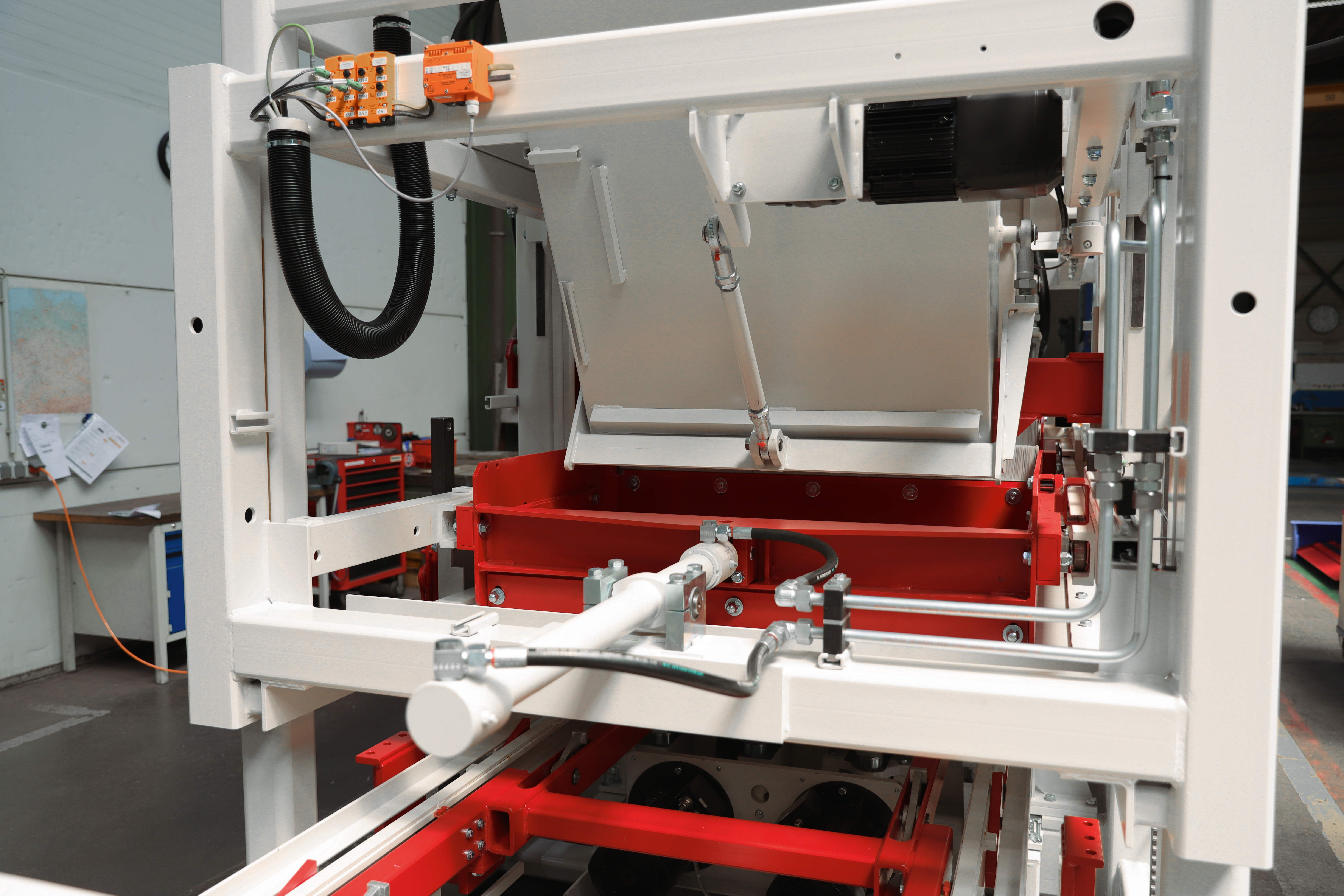

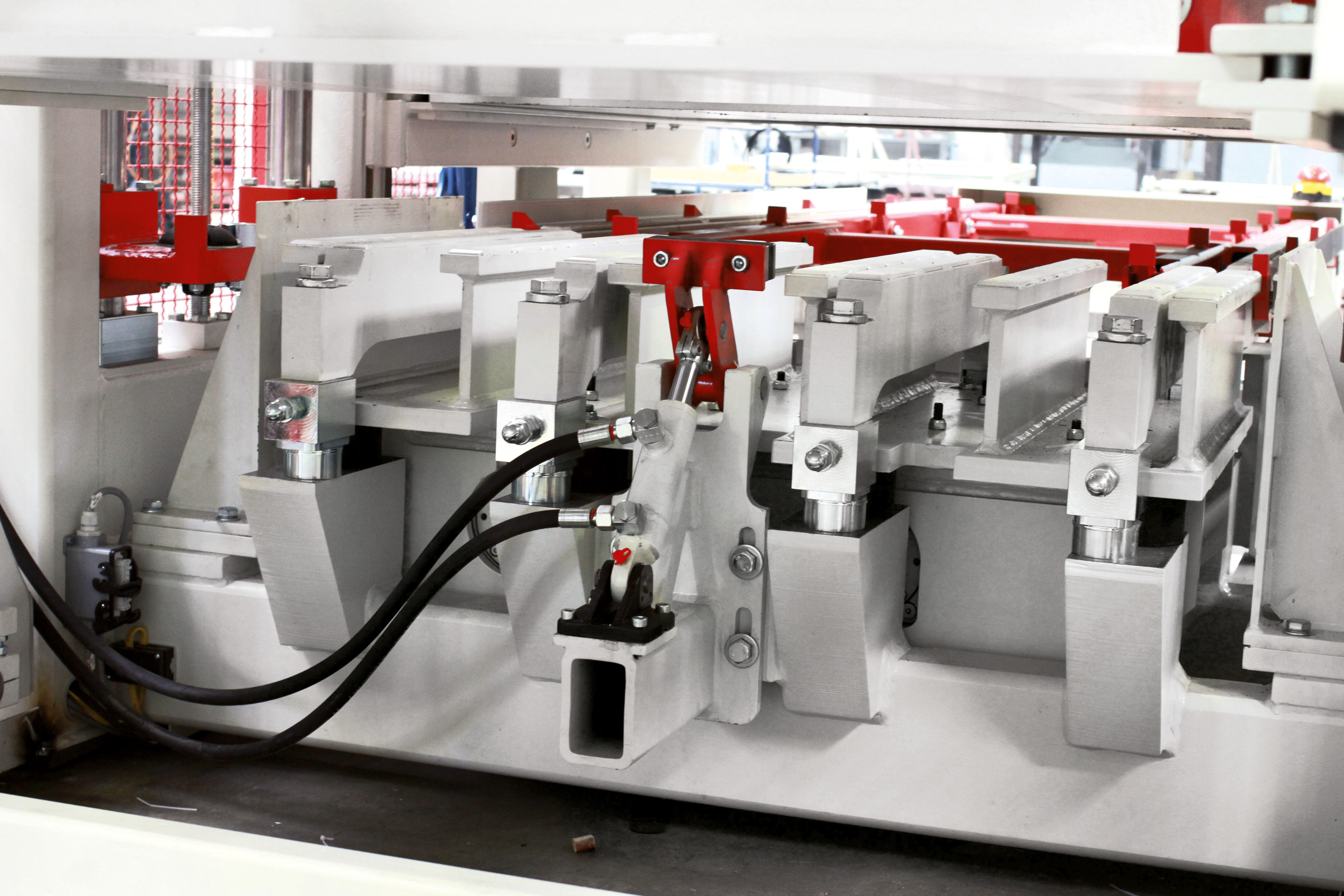

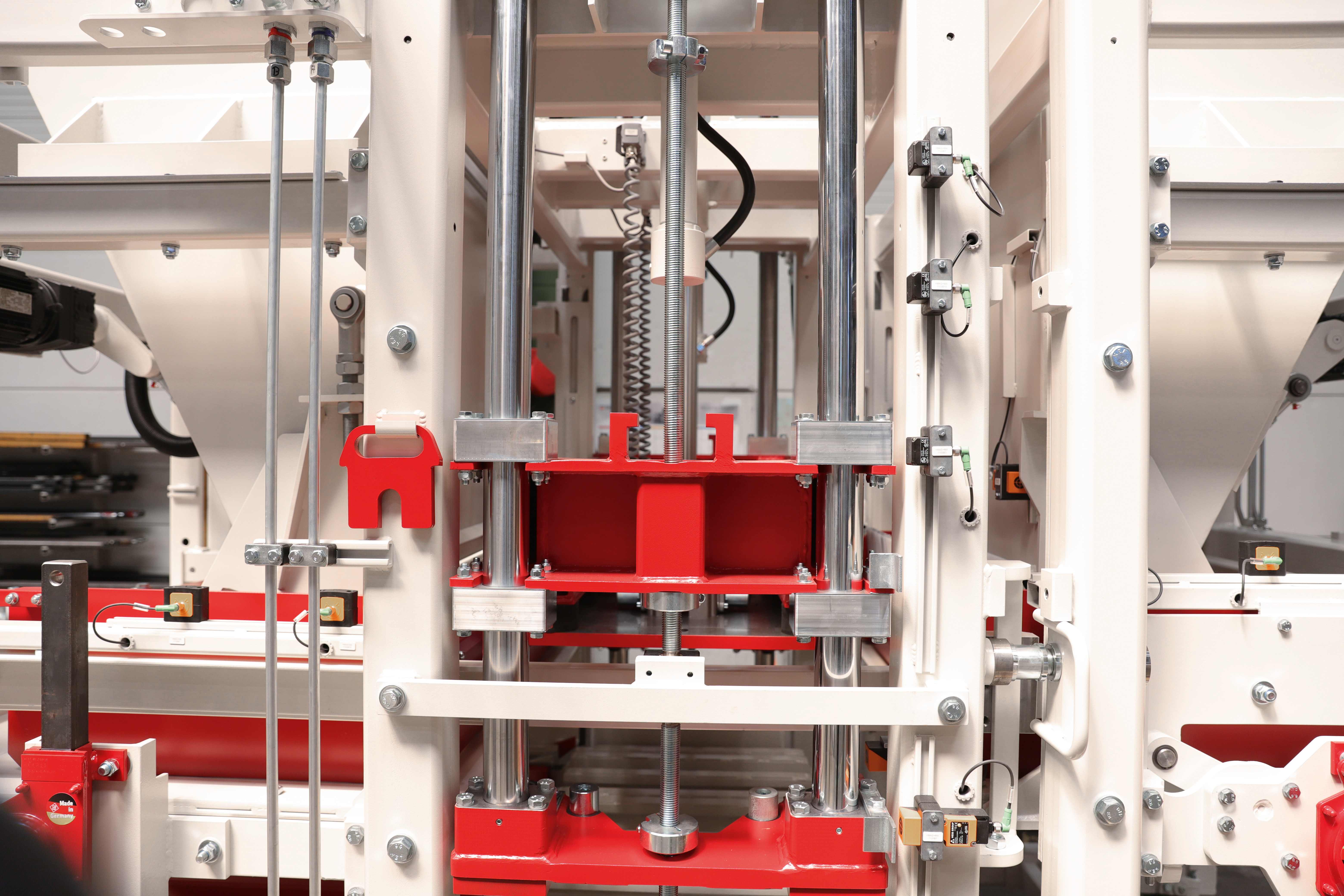

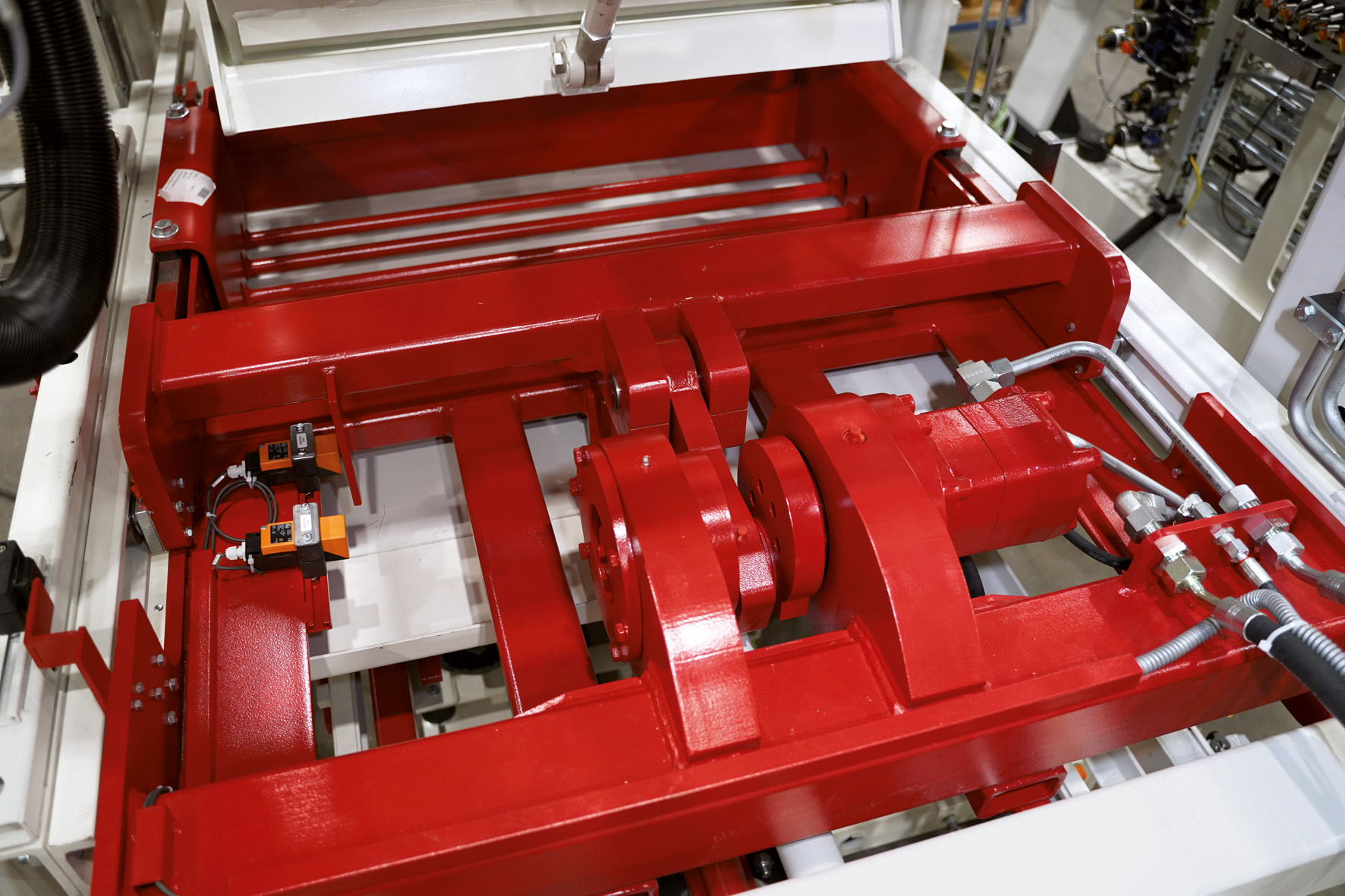

HESS RH 500-3 machine overview showing the complete assembly with filling unit and vibration system.

PLANT LAYOUT

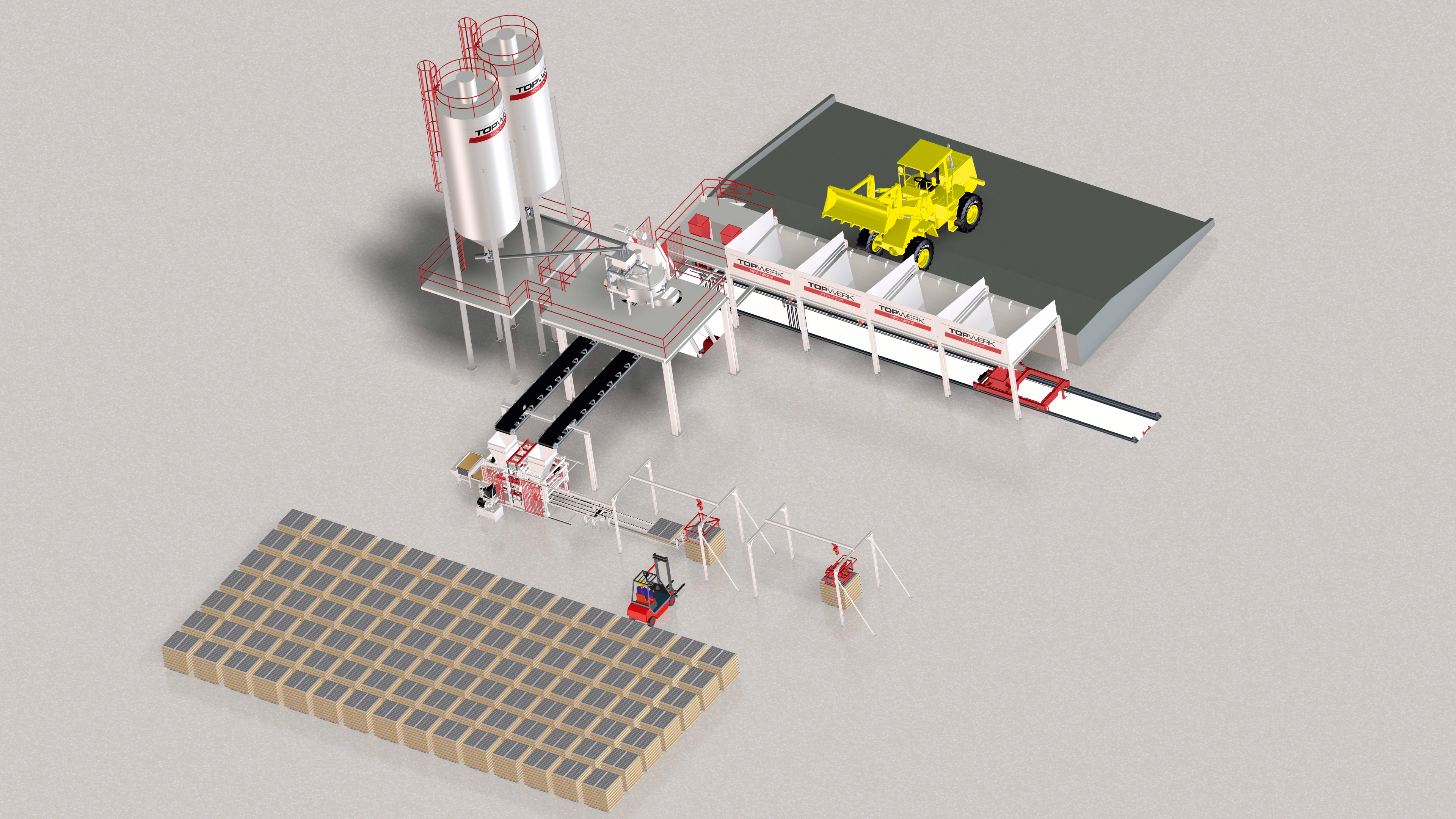

One line with ATZ P-4 (manual cubing)

1 2 3 4 5 6

1 Aggregate silos

2 Mixing plant

3 Machine RH 500-3 VA

4 Board clamp

5 Manual cuber ATZ P4

6 Curing area

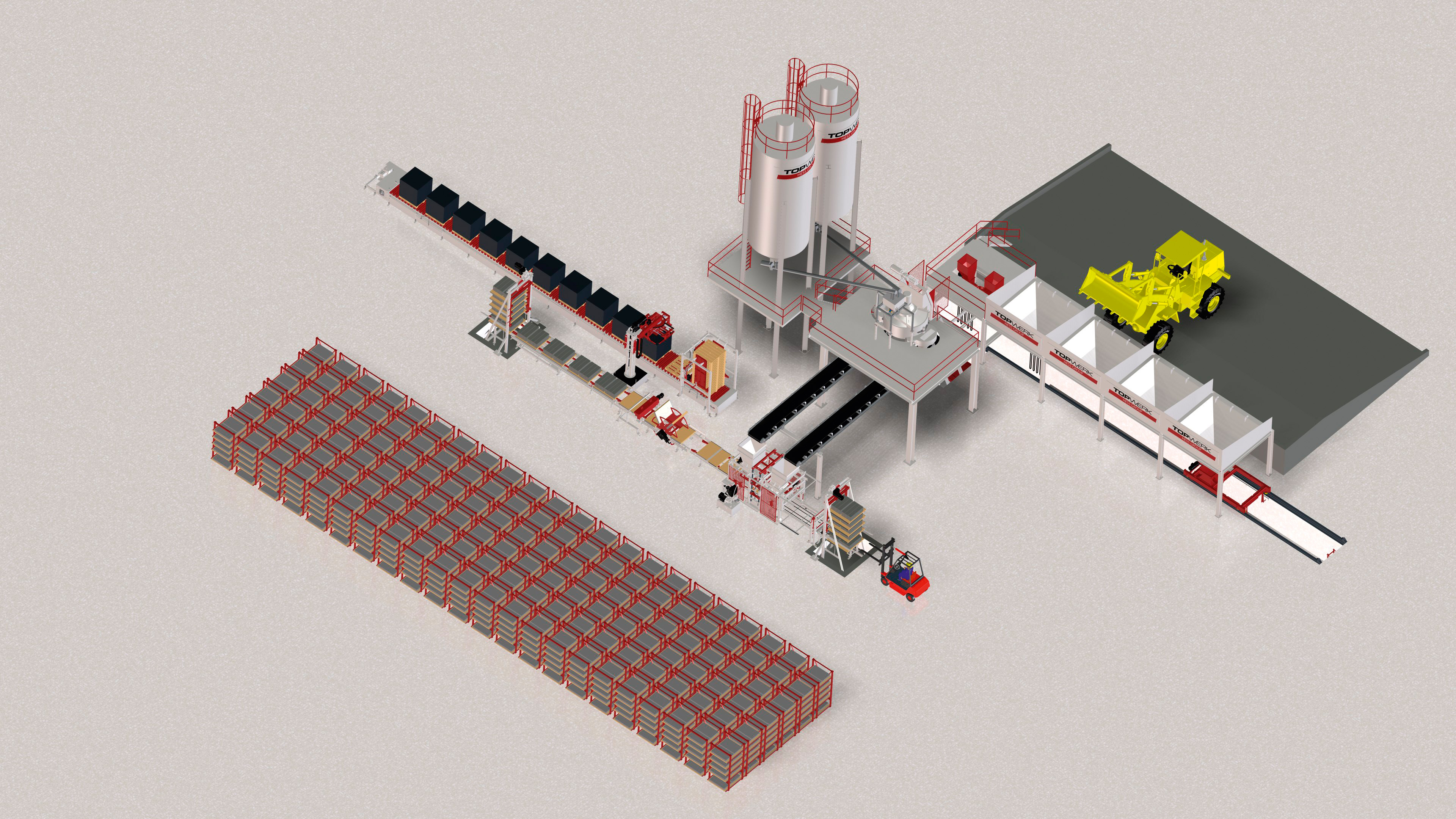

One line with forklift frames & Radial Cuber

1 2 3 4 5 6 7 8 9 10

1 Aggregate silos

2 Mixing plant

3 Machine RH 500-3 VA

4 Frame stacker

5 Frame destacker

6 Latch conveyor

7 Board turner

8 Radial cuber R 600

9 Frame conveyor

10 Curing area

		RH 500-3
Production board (mm)		1,200 x 670
Production area (mm)		1,100 x 620
Min. product height (mm)		25
Max. product height (mm)		300
Machine weight in VA version (kg)		7,700
Paving stone 10x20x5cm without face mix:	Cycle time (s)	17
	m² in 8h	863
	Quantity of stones/mold	30
Paving stone 10x20x6cm with face mix:	Cycle time (s)	22
	m² in 8h	667
	Quantity of stones/mold	30
Hollow block 20x40x20cm	Cycle time (s)	20
	Quantity in 8h	6,120
	Quantity of stones/mold	5
Production output is calculated based on 85 percent machine availability and is significantly influenced by machine settings, the concrete mixing recipe used, the quality of raw materials, the performance of other related plant equipment, mold characteristics, the stone format, and the production pallets used. Technical Data are subject to change.
