FOR SLABS

HERMETIC PRESSES.

For single- and double-layer concrete slabs.

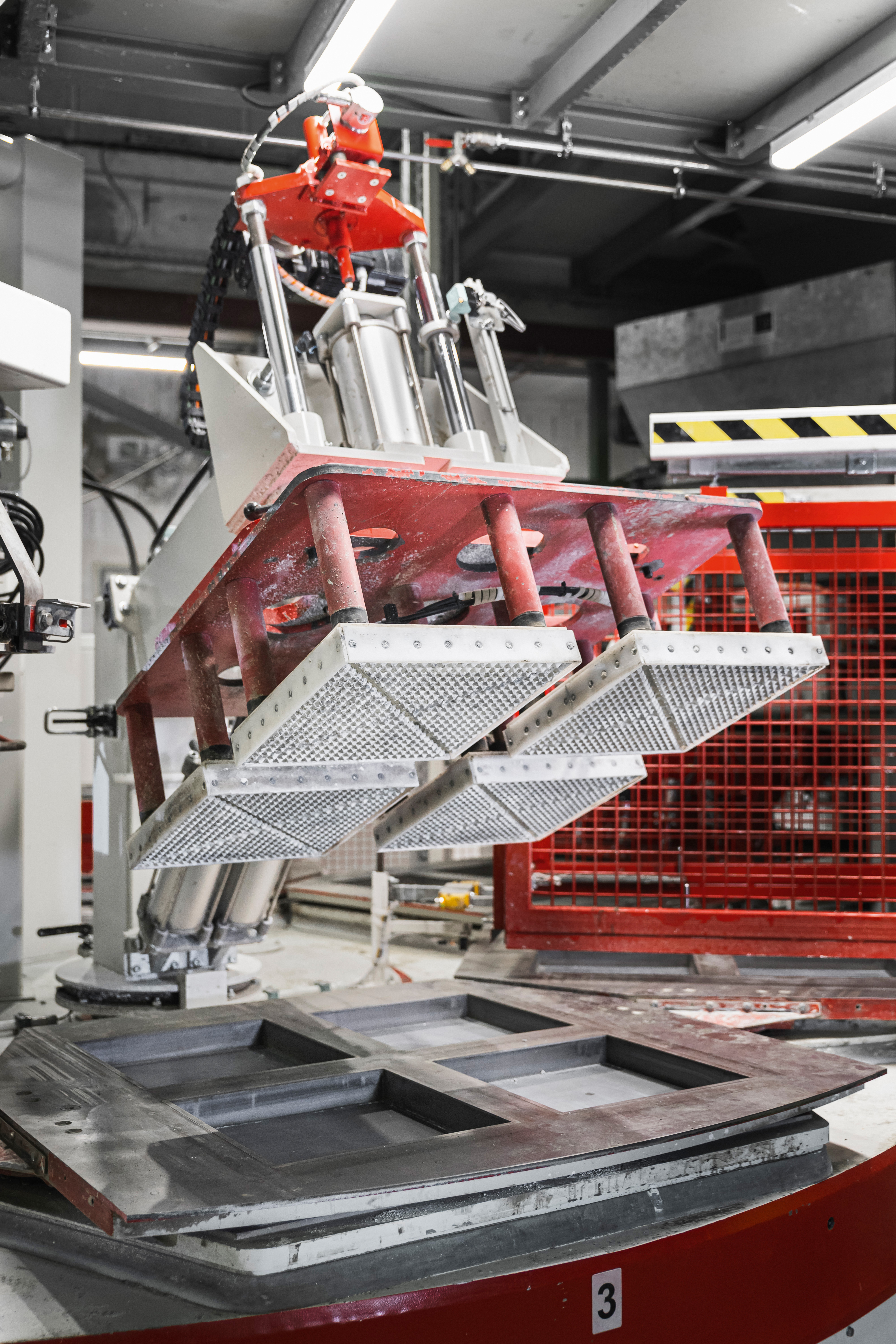

Hermetic presses are used for producing double-layer, square and rectangular slabs. The portfolio includes variants such as the Hermetic Press UNI and concepts with flat storage.

PLANT LAYOUT

Press	UNI 600/7	UNI 1200/7	UNI 1200/6	UNI 1200 plus/6
Number of stations	7	7	6	6
max. slab formats 1-fold (mm)	600 x 600	(1,000 x 1,000 when using 3 molds) 800 x 800 900 x 600 1,000 x 500	1,000 x 1,000	1,000 x 1,000 1,200 x 800
max. slab formats 2-fold (mm)	600 x 400	500 x 500	500 x 500	600 x 600
max. slab formats 4-fold (mm)	300 x 300	400 x 400	450 x 450	450 x 450
Turntable diameter (mm)	3,900	4,700	4,700	4,700
Distance mold frame lifting cylinder (mm)	1,090	1,275	1,275	1,475
min. slab thickness**	Depending on slab size, up to format 400 x 400 min. 35 mm, for bigger formats individual according material propertie.
max. slab thickness (mm)	80	100	100	100
max. pressure of main press-station (t)	600	1,200	1,200	1,200
Power consumption (kW)	68	95	95	95

*Performance data depending on product characteristics and required final result.
**In the case of a two-layer process.

Average cycle time (sec.)	approx. 12 - 22
depending on the product format and press type

*Depending on the product properties and the desired end result for double-layer slabs.

HIGHLIGHTS

Systems for single- and double-layer concrete slabs (square/rectangular)
UNI variant included in the portfolio

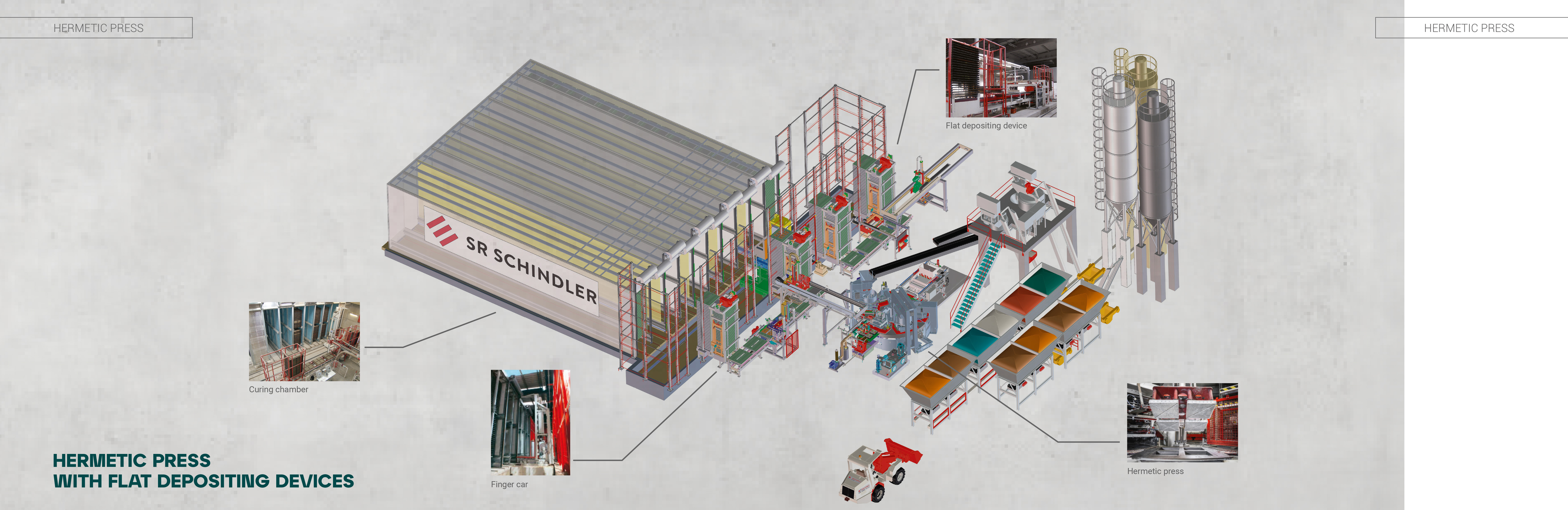

Optional flat storage concept (e.g., flat storage, drying chamber, transfer platform)
UNI: 6- or 7-station concept supports access for maintenance, mould change and operation (as stated in the catalog)
