PAVERS AND SLABS

CALIBRATING


SR SCHINDLER

FOR PAVERS AND SLABS



CALIBRATING.



For milling off fabrication tolerances (height differences or conicity). Treatment in dry or wet mode possible. Available as inline and offline machine.

Depending on customized requirements, calibrating machines are available with up to 3 stations. Quick tool exchange; frequency-controlled main drives and vertical movement. Processing parameters per product type can be saved.

PLANT LAYOUT PAVERS          PLANT LAYOUT SLABS

Close-up of calibrated concrete blocks with precise edges and contact surfaces for accurate wall construction.

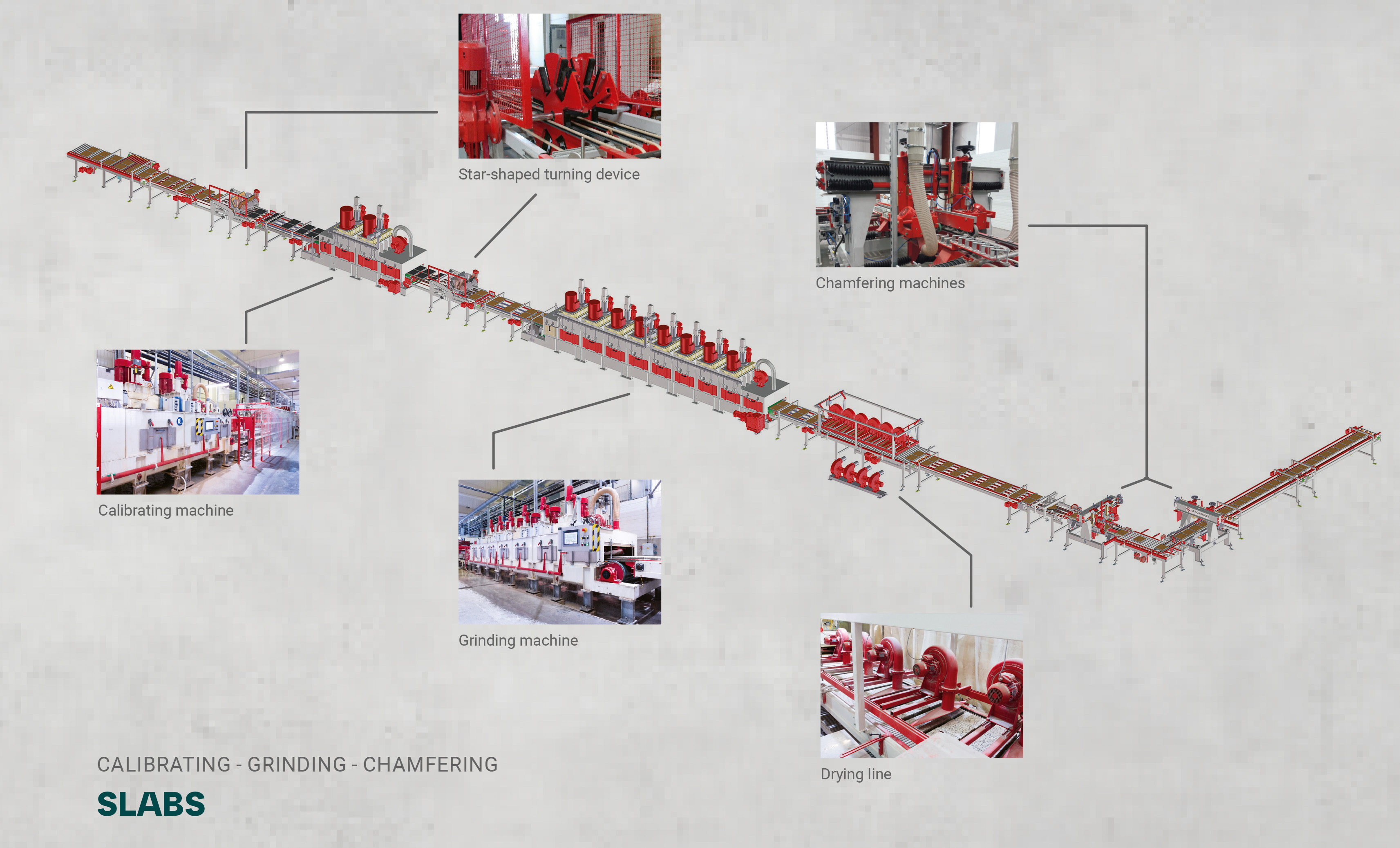

SLABS

CALIBRATING - GRINDING - CHAMFERING

1 2 3 4 5 6

1 Star-shaped turning device

2 Calibrating machine

3 Star-shaped turning device

4 Grinding machine

5 Drying line

6 Chamfering machines

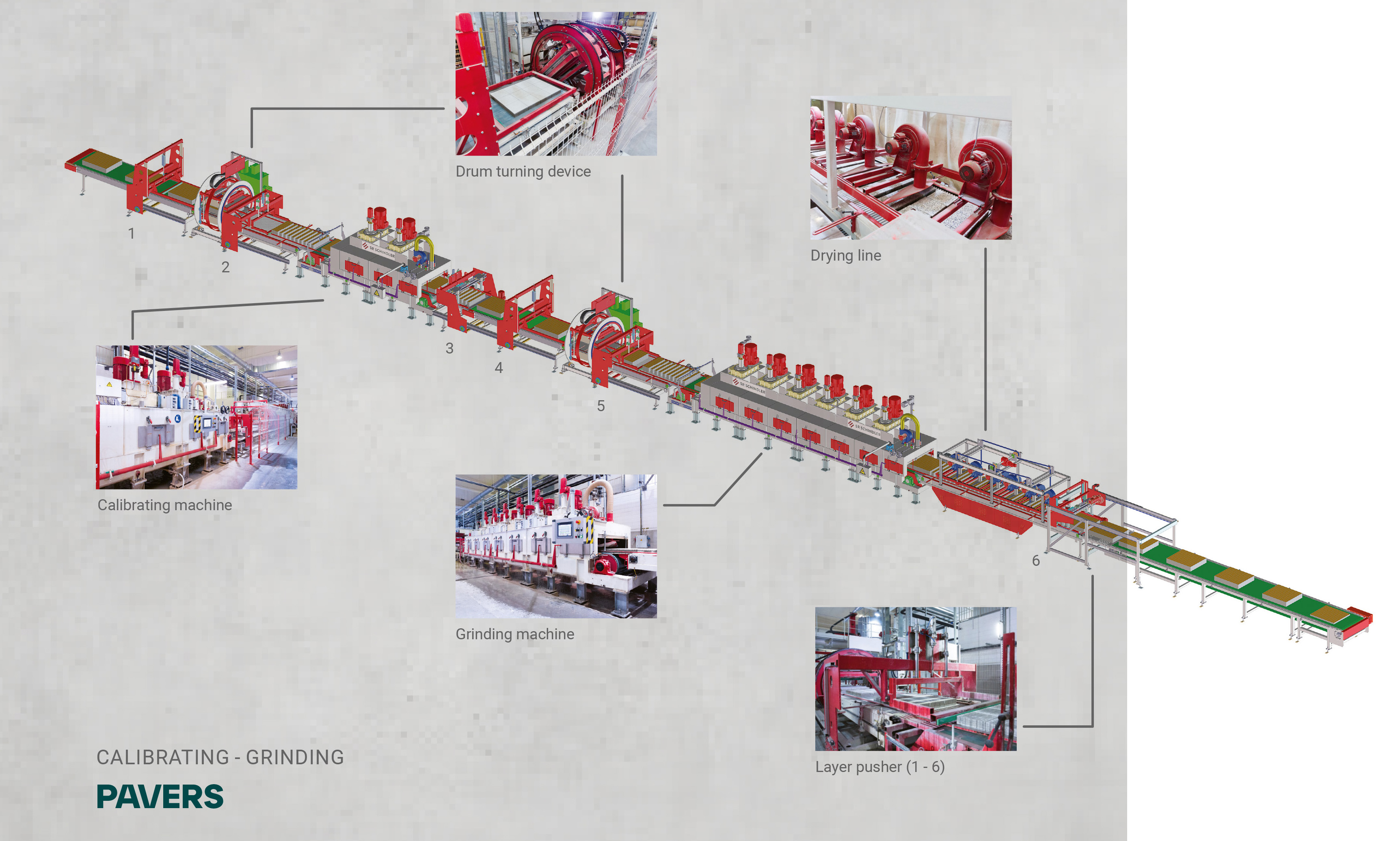

PAVERS

CALIBRATING - GRINDING

1 2 3 4 5 6

1 Drum turning device

2 Calibrating machine

3 Drum turning device

4 Grinding machine

5 Drying line

6 Layer pusher (1-6)

Product thickness: 30 mm - 400 mm
Working width: 850 mm/1,200 mm



Model8501200

1 station

Length x width x height (m)3.9 x 2.2 x 3.35.4 x 2.8 x 3.6
Total connected load (kW)up to 50up to 60
Water consumption wet operation
(without belt flushing) (m³/h)		up to 8up to 10
Air consumption during dry operation (m³/h)up to 6,000up to 9,000

2 stations

Length x width x height (m)5 x 2.2 x 3.36.8 x 2.8 x 3.6
Total connected load (kW)up to 95up to 110
Water consumption wet operation (m³/h)up to 16up to 20
Air consumption during dry operation (m³/h)up to 12,000up to 18,000

3 stations

Length x width x height (m)6.1 m x 1.9 m x 3.38.3 m x 2.8 m x 3.5
Total connected load (kW)up to 150up to 160
Water consumption wet operation (m³/h)up to 24up to 30
Air consumption during dry operation (m³/h)up to 18,000up to 27,000

*Performance data depends on the product characteristics and the desired final result.

Belt speed (m/min)0.5-5
Average processing speed:
in wet mode (m/min)approx. 2-2.5
in dry mode (m/min)approx. 1-1.5

*Depending on product characteristics and required final result.

HIGHLIGHTS


  • Dry or wet operation; inline or offline available
  • Modular design (stations can be retrofitted)
  • Quick tool exchange; independent control and operation panel with visualization
  • Planar, smooth belt transport through the stations



BROCHURE - CALIBRATING (PDF)

FINISHING AND PROCESSING SOLUTIONS FOR CONCRETE BLOCKS AND SLABS

COMPLETE PLANTS

Please discuss your requirements with us – we'll design the right solution for you.

REQUEST CALIBRATING SOLUTION
