CONCRETE BLOCKS AND PAVERS

BUSHHAMMER-
ING AND AGING

SR SCHINDLER

FOR BLOCKS AND PAVERS

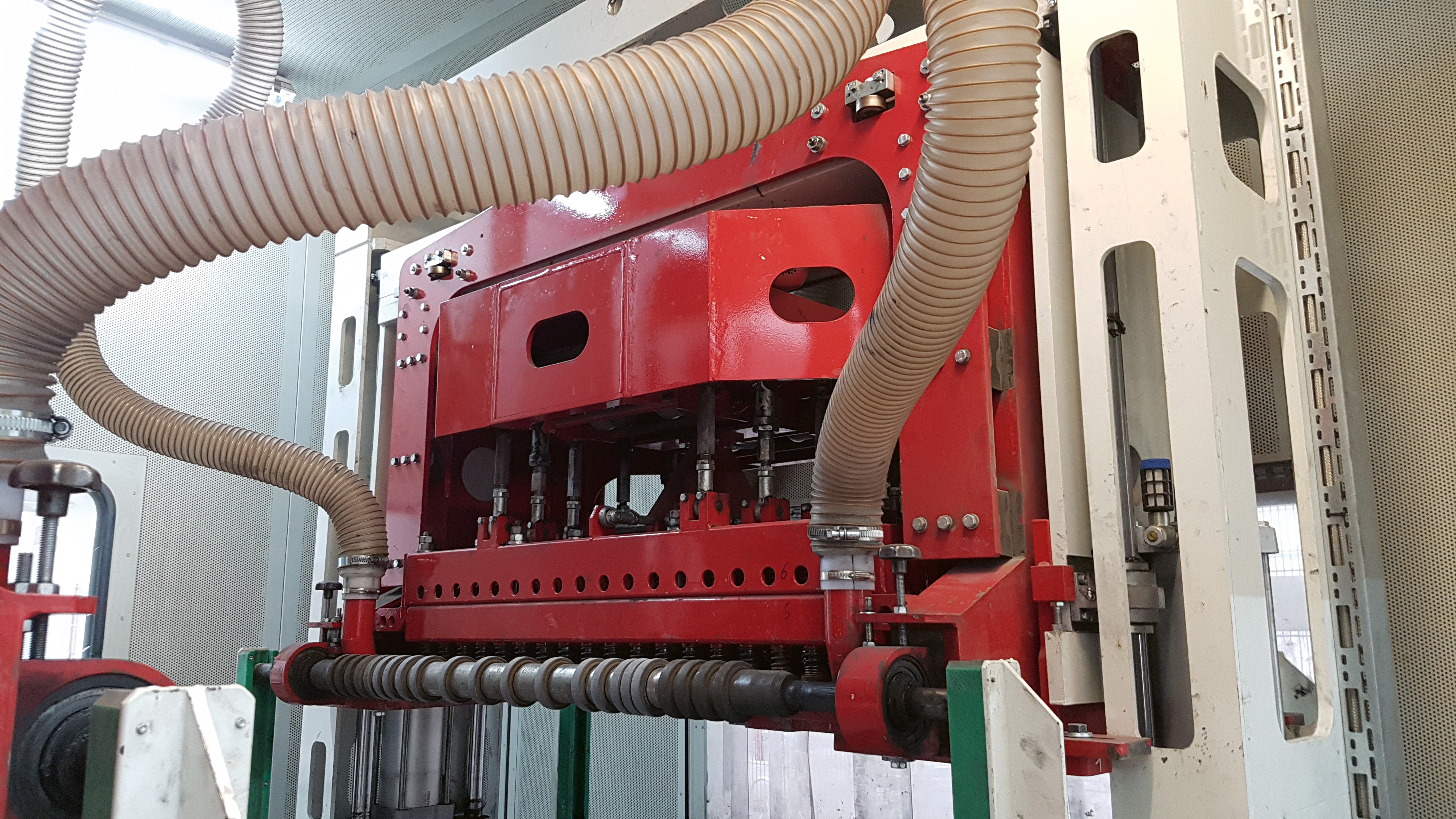

BUSHHAMMERING AND AGING.

For pavers, wall stones, block steps, palisades and wall covers. Available as stand‑alone machine, integrated in a value adding line or as a bypass to the stone making machine.

The machine can be equipped with 1–3 processing supports and fitted with bushhammers or aging hammers. Belt speed, processing frequency and oscillation are adjustable. Due to layer-wise treatment, sorting after treatment is not necessary.

Antique-style concrete pavers in a landscaped garden path with textured surfaces and natural stone character.

BUSHHAMMERING/AGING

SEMI-AUTOMATIC LINE

1 2 3 4 5 6 7 8 9 10 11 12 13

1 Crane with 4-sided clamp

2 Belt conveyor

3 Layer pusher with transfer table

4 Bushhammering and aging machine with 2 processing units

5 Foil dispenser

6 cartridge filter

7 Waste conveyor

8 Retarding roller chain conveyor conveyor for quality control

9 Crane with vacuum lifting device

10 Layer pusher with transfer table

11 Belt conveyor

12 Crane with 4-sided clamp

13 Electrical control system

BUSHHAMMERING/AGING - SPLITTING - EDGE BREAKING

INLINE SOLUTION

1 2 3 4 5

1 Bushhammering aging machine

2 Splitting machine

3 Edge breaking machine

4 Splitting machine

5 Layer pusher

Product thickness: 50 mm - 350 mm
Working width: 1,050 mm/1,200 mm

Model	1050	1200
1 aggregate
Length x width x height (mm)	5,500 x ca. 2,400 x ca. 3,200	5,500 x ca. 2,600 x ca. 3,200
Total connected load (kW)	ca. 11	ca. 11
Filter exhaust air (m³/h)	3,700	3,700
Aging or bushhammers	max. 87	max. 105
2 aggregates
Length x width x height (mm)	ca. 7,400 x ca. 2,400 x ca. 3,200	ca. 7,400 x ca. 2,600 x ca. 3,200
Total connected load (kW)	ca. 20	ca. 20
Filter exhaust air (m³/h)	6,000	6.000
Aging or bushhammers	max. 174	max. 210
3 aggregates
Length x width x height (mm)	ca. 9,600 x ca. 2,400 x ca. 3,200	ca. 9,600 x ca. 2,600 x ca. 3,200
Total connected load (kW)	ca. 29	ca. 29
Filter exhaust air (m³/h)	9,000	9,000
Aging or bushhammers	max. 261	max. 315

Belt speed	0,8-8 m/min
Average processing speed	approx 2-6 lin. m/min (depending on number of support)
*Depending on product characteristics and required final result.
