PAVERS AND SLABS

SHOTBLASTING

SR SCHINDLER

FOR PAVERS AND SLABS

SHOTBLASTING.

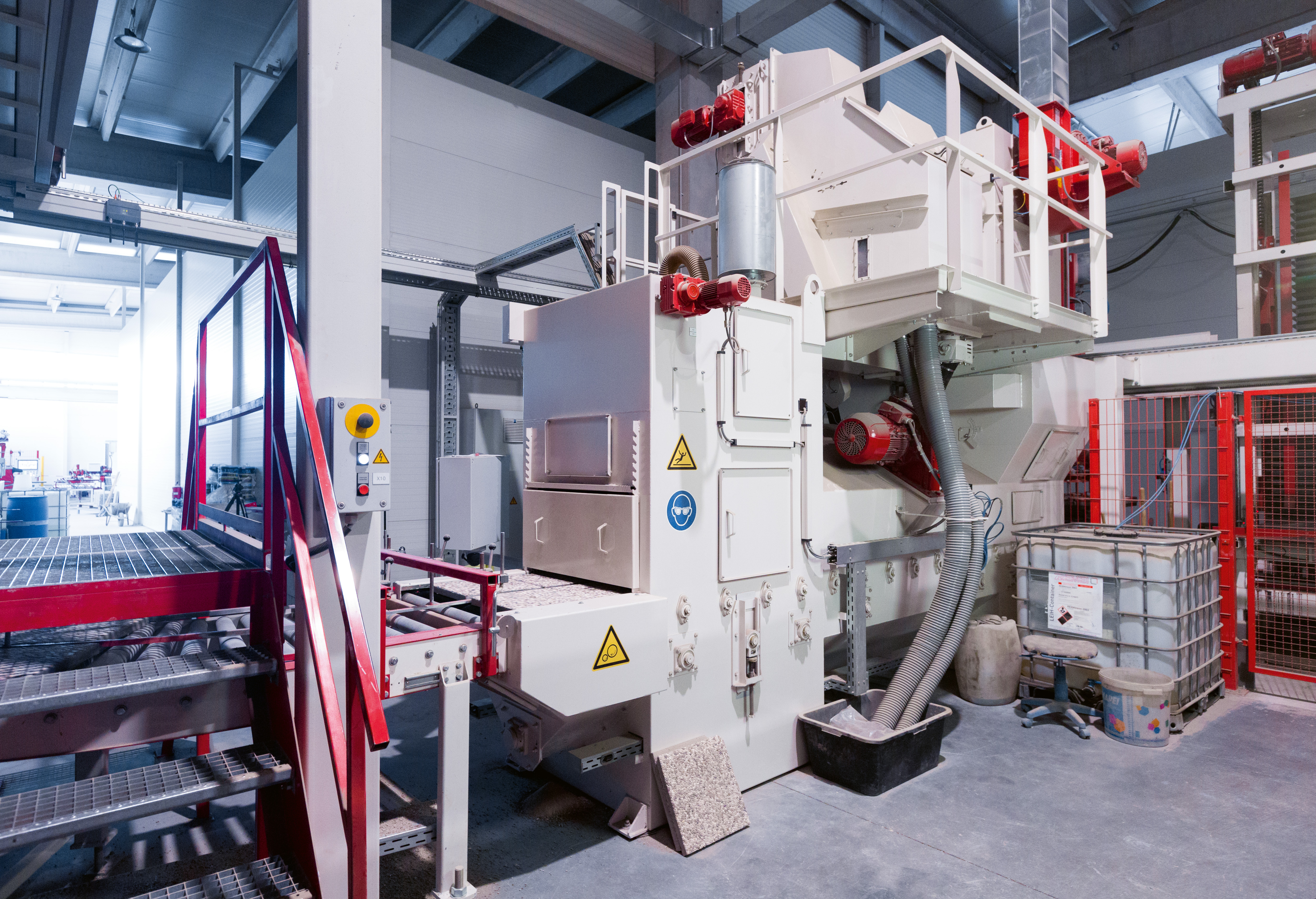

The shotblasting machine is used to remove cement from the product surface and expose the aggregate on pavers, concrete slabs, kerbstones and step blocks. Processing can be applied either to the visible face and/or the side faces. Depending on the infeed/outfeed situation, products are processed in indexing mode or in continuous flow.

Product thickness: 20 mm - 400 mm
Working width: 850 mm/1,200 mm

Model	850	1200
Abrasive consumption (kg/min)	150 per turbine	240 per turbine
Electric power (kW)	approx. 49	approx. 75
Compressed air for filter and control (m³/h)	22 at 6 bar	36 at 6 bar
Noise level (db(A))	<90	<90
Filter capacity/power	approx. 6,000 m³/h / 15 kW	approx. 9,600 m³/h / 30 kW

* Optional noise reduction possible
Depending on product characteristics and the required final result.

Belt speed (m/min)	2.5 - 11
Average processing speed (m/min)	approx. 5 lin. m/min

*Depending on product characteristics and required final result.

HIGHLIGHTS

Processing on the visible face and/or side faces
Operated with steel or stainless steel shot (Ø 0.6–0.8 mm); 2 or 4 turbines
Frequency-controlled belt and turbine drives; adjustable belt speed
Available working widths: 850 mm and 1,200 mm

BROCHURE - SHOTBLASTING (PDF)

FINISHING AND PROCESSING SOLUTIONS FOR CONCRETE BLOCKS AND SLABS

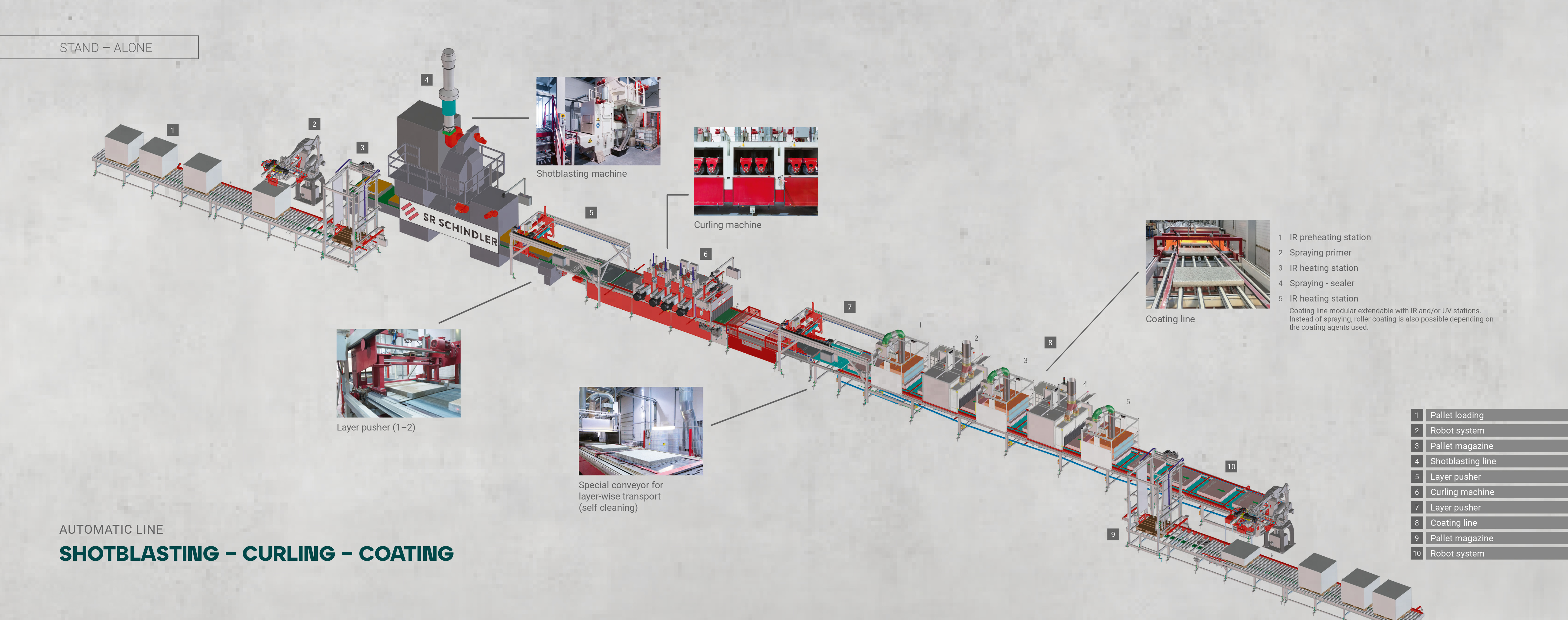

COMPLETE PLANTS

Please discuss your requirements with us – we'll design the right solution for you.

REQUEST SHOTBLASTING SOLUTION
