CONCRETE BLOCKS

SPLITTING


SR SCHINDLER

FOR BLOCKS



SPLITTING.



For block stones, wall stones, hollow block stones, palisades and block steps. Available with one or two splitting machines with 90° rotating table for longitudinal and traverse split.

Equipped with high-capacity hydraulics with pressure accumulator for fast cycles, controlled splitting patterns and splitting pressure up to 120 t (model dependent). Precise product positioning supports accurate splitting and less waste; can be combined with edge treatment and bushhammering/aging.

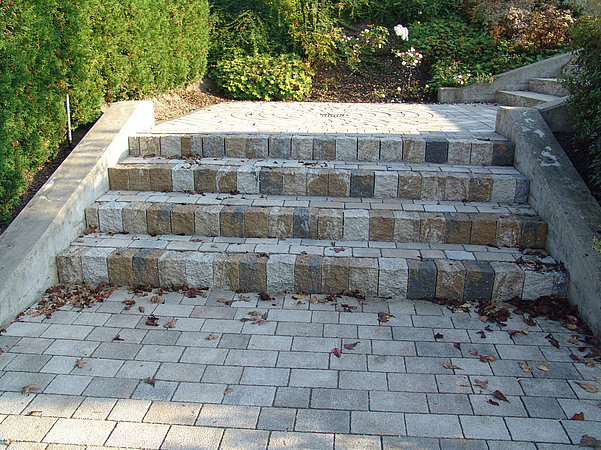

Concrete block steps with mixed-tone risers and coordinated paving stones in a landscaped garden path.

SPLITTING LINE

SEMI-AUTOMATIC LINE

1 2 3 4 5 6 7 8 9 10 11 12 13 14

1 Crane with 4-sided clamp for infeed

2 Belt conveyor

3 Layer pusher with transfer table

4 Splitting machine 1

5 Layer pusher with waste flap

6 Waste conveyor

7 Layer pusher with turntable

8 Layer pusher with transfer table

9 Splitting machine 2

10 Layer pusher with waste flap

11 Waste conveyor

12 Extended belt conveyor for quality control

13 Crane with vacuum lifting device for quality sorting

14 Electrical control system

Product thickness: 50 mm - 350 mm
Working width: 800 mm/1,200 mm



Model 8001200
Splitting width (mm) 8001,200
Passage width (mm) 9001,350
Splitting height (mm)with side knives100 - 350100 - 350
 without side knives50 - 35050 - 350
Passage height (mm) 410410
Splitting pressure (t) 80120
Connected load (kW) approx. 12approx. 13

*Depending on the product characteristics, the required final result, as well as the product size and the necessary splitting processes.

Splitting cycle with product transport includedapprox. 8 sec.

*Depending on product characteristics and required final result and also on product size and splittings to be carried out.

HIGHLIGHTS


  • Very high splitting accuracy (clean break edges, exact positioning)
  • High-capacity hydraulics for fast cycles and controlled splitting patterns
  • Optional line with 1–2 splitting machines and 90° rotating table
  • Feeding technology with automatic waste flap; formatting of layers for packing
