FOR PAVERS AND SLABS



COATING.



The coating line is designed for layer-by-layer impregnation or coating of pavers, and for row-by-row impregnation or coating of slabs.

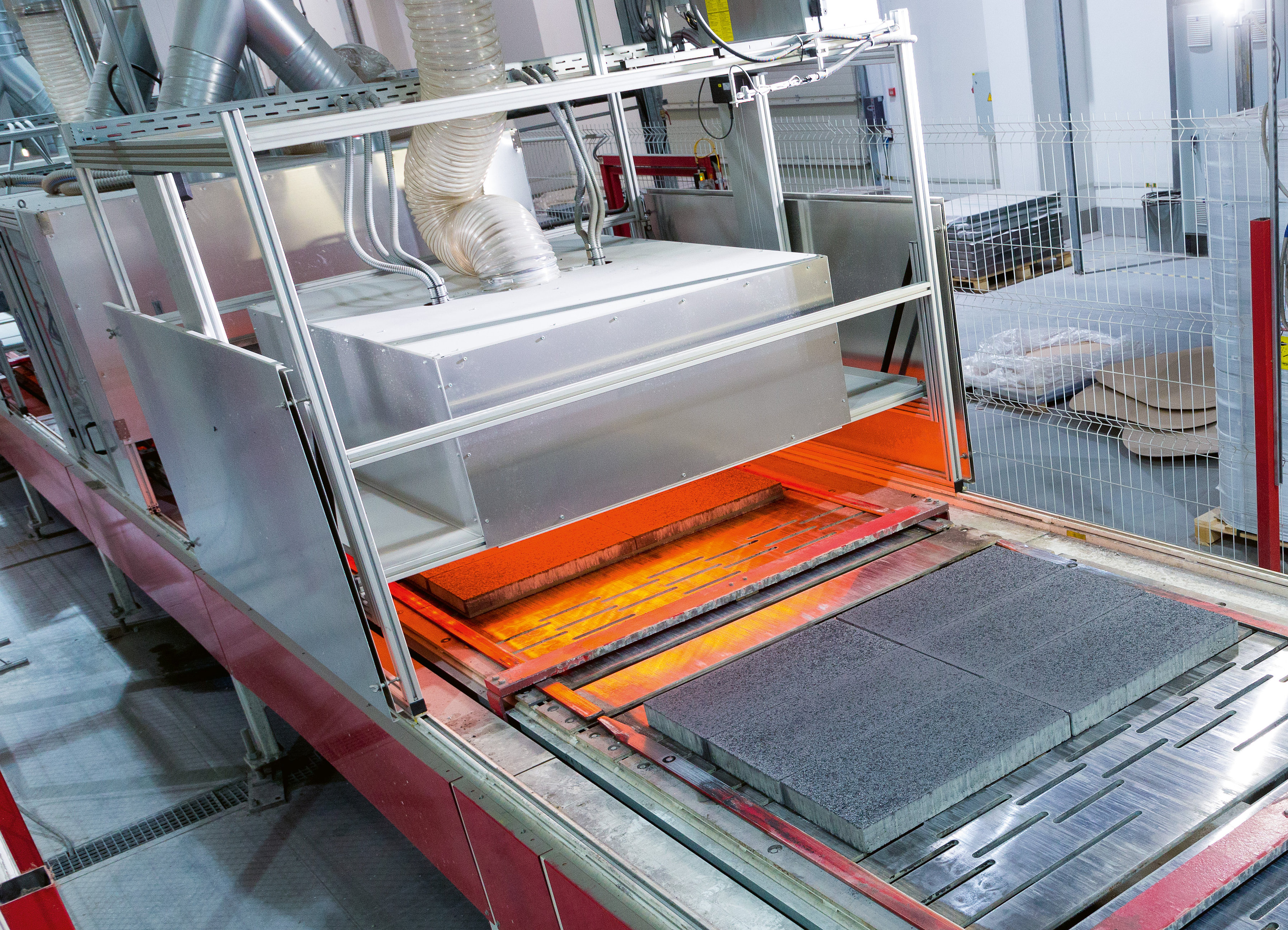

The standard configuration includes an infrared preheating station, spraying for primer, an infrared heating station, spraying for sealer, and a further infrared heating station. Additional IR and/or UV stations can be integrated modularly; application is by spraying or roller coating (depending on the coating medium).

1 2 3 4 5 6 7 8 9 10

1 Pallet loading

2 Robot system

3 Pallet magazine

4 Shotblasting line

5 Layer pusher

6 Curling machine

7 Layer pusher

8 Coating line

9 Pallet magazine

10 Robot System

Belt speed (m/min)1 - 10
Average processing speed (m / min)approx. 4 - 5 lin.

*Depending on product characteristics and required final result.

HIGHLIGHTS


  • Layer-by-layer (pavers) and row-by-row (slabs) impregnation/coating
  • Standard line with IR preheating, primer spray, IR heating, sealer spray, IR heating
  • Modular expansion with additional IR and/or UV stations
  • Application by spraying or roller coating (optional UV curing), depending on the coating medium



BROCHURE - COATING (PDF)

FINISHING AND PROCESSING SOLUTIONS FOR CONCRETE BLOCKS AND SLABS

COMPLETE PLANTS

Please discuss your requirements with us – we'll design the right solution for you.
