PAVERS AND SLABS

CURLING

SR SCHINDLER

FOR PAVERS AND SLABS

CURLING.

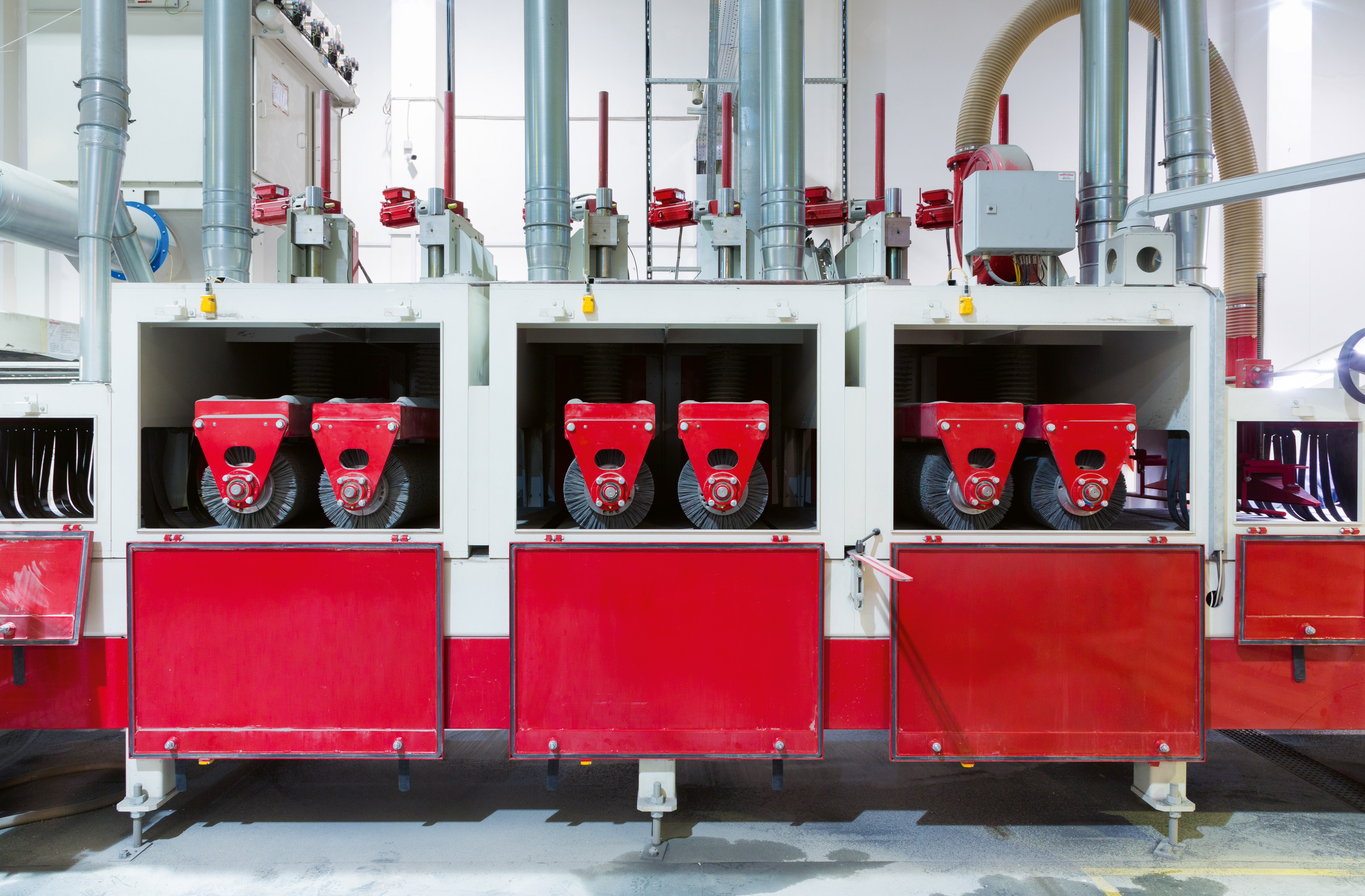

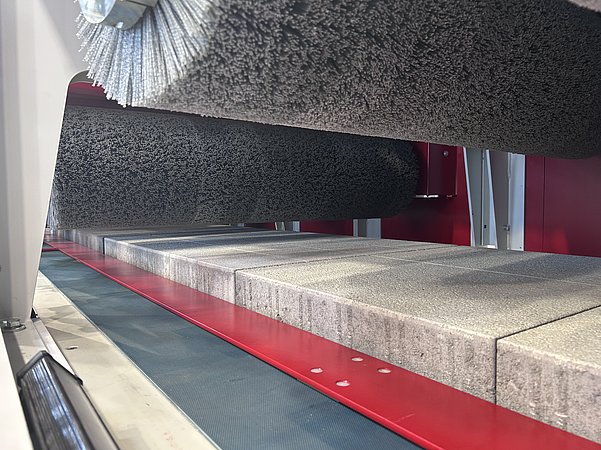

Curling processes pavers and slabs using rotating brush rollers. Paver layers and/or slabs are conveyed on a belt through the machine, which consists of two processing tunnels. Depending on configuration, segments with brush rollers are installed; brushes are arranged from coarse to fine. Processing is carried out in dry operation.

Product thickness: 20-350 mm
Working width: 850 mm/1,200 mm

Model	850	1200
Length (mm)	approx. 7,500	approx. 8,000
Width (mm)	approx. 2,500	approx. 2,800
Height (mm)	approx. 3,000	approx. 3,200
Total connected load (2-/4-/6-times) (kW)	35 / 68 / 100	50 / 95 / 140
Exhaust air (2-/4-/6-times) (m³/h)	4,500 / 6,000 / 9,600	6,000 / 9,600 / 12,000

*Depending on product characteristics and the required final result.

Belt speed (m/min)	1-10
Average processing speed (m/min):	approx. 3 - 4 lin.

*Depending on product characteristics and required final result.

HIGHLIGHTS

Machine with two processing tunnels; brushes arranged from coarse to fine
Brushes are segmented – worn segments can be replaced individually
Dry operation; working widths 850 mm and 1,200 mm
Available as an offline machine, integrated in a line, or as a bypass

BROCHURE - CURLING (PDF)
