PAVERS AND SLABS

GRINDING

SR SCHINDLER

FOR PAVERS AND SLABS

GRINDING.

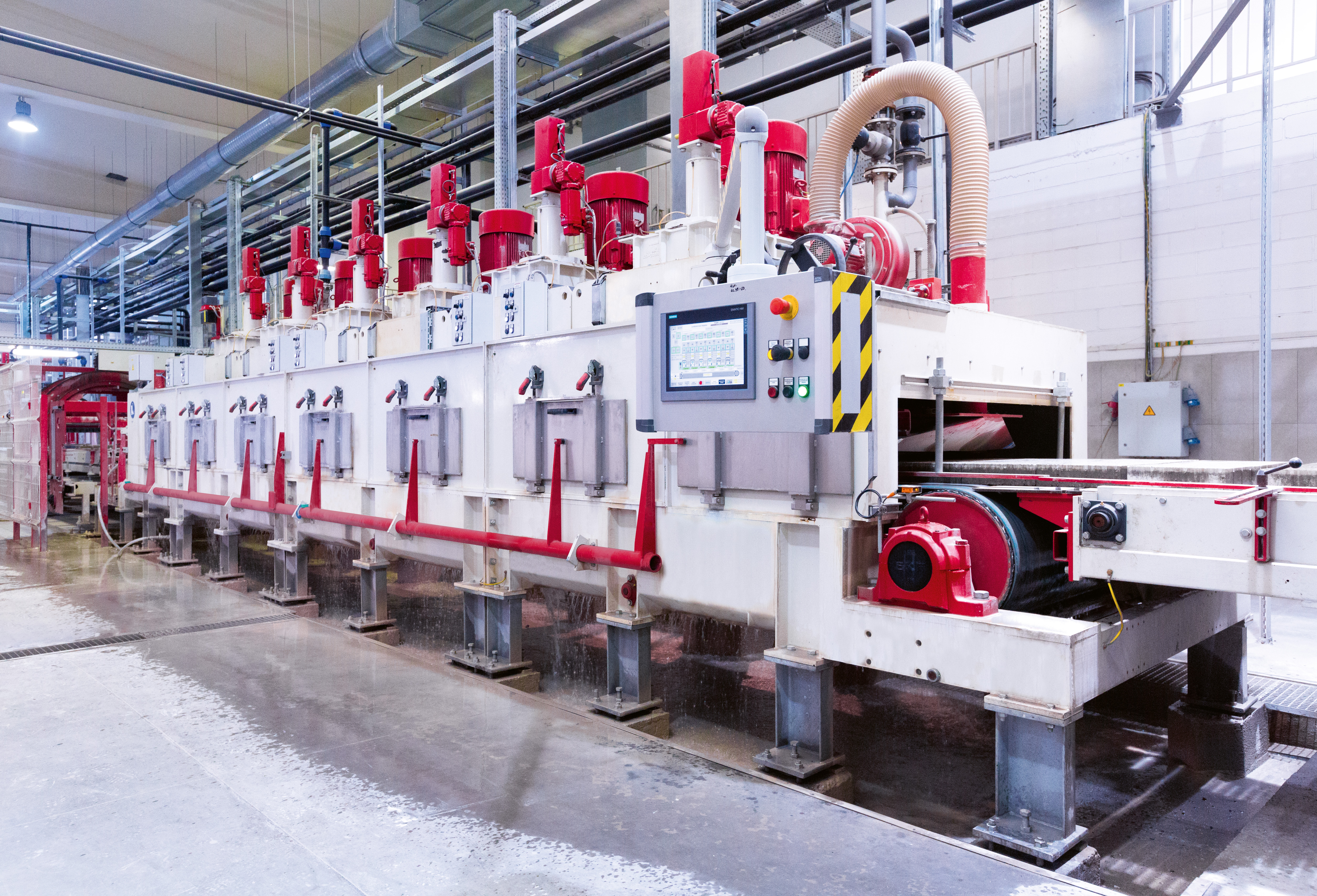

Calibrating is a precondition for optimum grinding results. Products are ground with up to 10 high-power stations. Treatment in dry and wet mode possible.

Depending on the number of grinding stations used, a surface appearance from rough to fine can be achieved. Processing parameters per product type can be saved. Can be combined with other value adding steps like chamfering, shotblasting, curling, coating and impregnation.

Concrete tiles with decorative inlays in a patio setting, showing a smooth surface finish.

SLABS

CALIBRATING - GRINDING - CHAMFERING

1 2 3 4 5 6

1 Star-shaped turning device

2 Calibrating machine

3 Star-shaped turning device

4 Grinding machine

5 Drying line

6 Chamfering machines

PAVERS

CALIBRATING - GRINDING

1 2 3 4 5 6

1 Drum turning device

2 Calibrating machine

3 Drum turning device

4 Grinding machine

5 Drying line

6 Layer pusher (1-6)

Product thickness: 30 mm - 400 mm
Working width: 850 mm/1,200 mm

Model	850	1200
1 station
Length x width x height (m)	3.9 x 2.2 x 3.3	5.4 x 2.8 x 3.6
Total connected load (kW)	up to 50	up to 60
Water consumption wet operation (without belt flushing) (m³/h)	up to 8	up to 10
Air consumption during dry operation (m³/h)	up to 6,000	up to 9,000
2 stations
Length x width x height (m)	5 x 2.2 x 3.3	6.8 x 2.8 x 3.6
Total connected load (kW)	up to 95	up to 110
Water consumption wet operation (m³/h)	up to 16	up to 20
Air consumption during dry operation (m³/h)	up to 12,000	up to 18,000
4 stations
Length x width x height (m)	9.6 x 2.2 x 3.3	11 x 2.8 x 3.6
Total connected load (kW)	up to 185	up to 210
Water consumption wet operation (m³/h)	up to 24	up to 30
Air consumption during dry operation (m³/h)	up to 24,000	up to 36,000
6 stations
Length x width x height (m)	10.5 x 2.2 x 3.3	14 x 2.8 x 3.6
Total connected load (kW)	up to 275	up to 310
Water consumption wet operation (m³/h)	up to 32	up to 40
Air consumption during dry operation (m³/h)	up to 36,000	up to 54,000
8 stations
Length x width x height (m)	12 x 2.2 x 3.3	17 x 2.8 x 3.6
Total connected load (kW)	up to 365	up to 410
Water consumption wet operation (m³/h)	up to 48	up to 60
Air consumption during dry operation (m³/h)	up to 54,000	up to 72,000
10 stations
Length x width x height (m)	14.2 x 2.2 x 3.3	20 x 2.8 x 3.6
Total connected load (kW)	up to 455	up to 510
Water consumption wet operation (m³/h)	up to 80	up to 100
Air consumption during dry operation (m³/h)	up to 60,000	up to 90,000

*Depending on product characteristics and the required final result.

Belt speed (m/min)	0.5 - 5
Average processing speed:
in wet mode (m/min)	ca. 2 - 2.5
in dry mode (m/min)	ca. 1 - 1.5

*Depending on product characteristics and required final result.

HIGHLIGHTS

Dry or wet mode; up to 10 stations (model dependent)
Rough-to-fine surface appearance via station/tool configuration
Stations can be equipped with milling diamonds, smoothening or grinding segments
Fully automated contact pressure control (station dependent)
